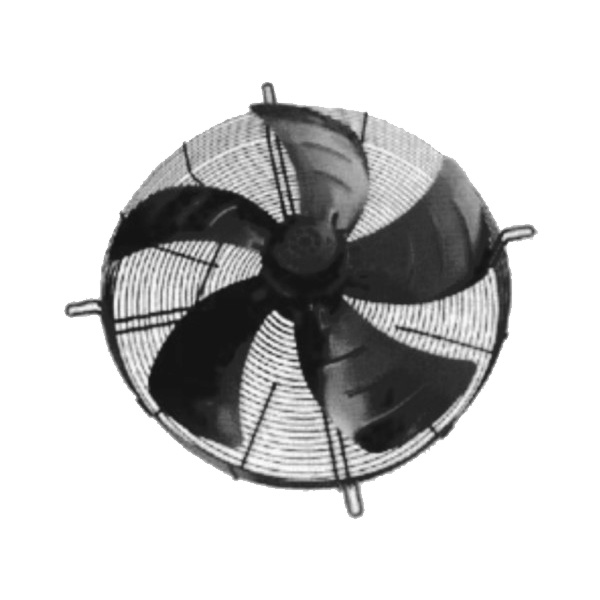

RQA550
RQA550
RQA550
RQA550
|
VOLTAGE |
FREQUENCY |
CURRENT |
INPUT |
SPEED |
AIR VOLUME |
NOISE |
CAPACITOR |
APPROX.WEIGHT |
SIZE |
|||||
|
MODEL |
V |
Hz |
A |
W |
r/min |
M3/h |
dBA |
μF |
Kg |

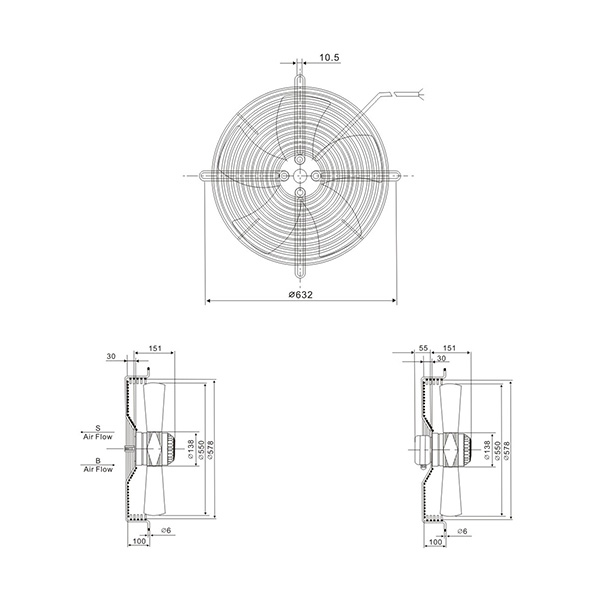

A |
B |
ΦD |
L |
H |
|
RQA4E-550 |
220 |
50 |
2.10 |
500 |
1300 |
8300 |
75 |
10 |
10.5 |
100 |
144 |
550 |
60 |
622 |
|
RQA4D-550 |
380 |
50 |
0.95 |
500 |
1300 |
8500 |
75 |
/ |
10.5 |
100 |
144 |
550 |
60 |
622 |
|
RQA6E-550 |
220 |
50 |
1.20 |
280 |
900 |
6500 |
70 |
10 |
10.5 |
100 |
144 |
550 |
60 |
622 |
|
RQA6D-550 |
380 |
50 |
0.75 |
280 |
900 |
6500 |
70 |
/ |
10.5 |
100 |
144 |
550 |
60 |
622 |
●The insulation class of the RQA series axial fan motor is F, and the protection class of that is IP54. All the motors have thermal protector in the winding.
●Voltage: The voltage of the single phase motor is 220V/50HZ, and the voltage of the three phases motor is 380V/50HZ, We can also supply other fan motors with different voltages and frequencies ac-cording to clients, requirement.
●The standard length of the electrical wire on the fan is 1.5m, and we also supply the fan mo-tors with connection box for clints, choises.
●The applicable ambient temperature of the fan motors used in condenser is from 0℃ to +60℃. The applicable ambient temperature of the fan motors used in evaporator is -30℃ to 0℃.
●The average service life of motors is over 30000 hours.
ILLustration Of Model
