SE-A250Z
SE-A250Z
SE-A250Z
10"|250mm|150Watts
1808M³H|1065CFM|510Pa
Main Features:

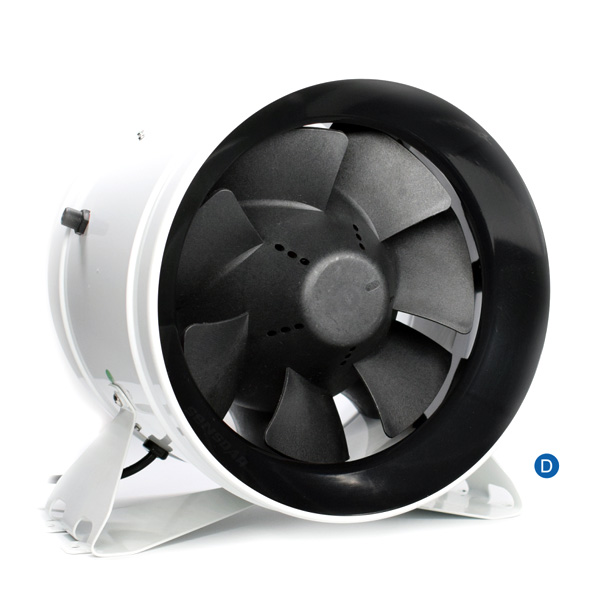

SE-A250Z mixed flow in-line fan is a truly compact unit with easier duct connections on both sides
The fan is built with cold-rolled steel housing and jet-engine design double impellers, and equipped with the cutting-edge brushless EC motor.
Thanks to its up-to-date design in the industry, it can work on much lower power consumption and deliver greater air volume and static air pressure.
Easier Duct Connection Design with Detachable Bracket(model D9
Blade Fire Proofing Grade UL94V-0
Detachable 0%-100% Speed Control(potentiometer) Included/Concealed Switch(Optional)
6-Poles Brushless Motor with Sine Wave
Double Heavy Duty NMB Ball Bearing
Locked Motor Protection [AUTO-RESTART]; Soft-Start Motor; Over-Voltage Lockout Protection
Customized Feature: PWM/Control by 0-10v/Voltage output/Tacho Output
Max. IP68 Water-proof Level Available
Fan Specifications
Fan Size |
10"|250mm |
Rated Voltage |
110V~120V|220V~240V |
Max.Power C. |
150W |
Frequency |
50Hz|60Hz |
Max. Speed |
3200RPM |
Max. Airflow |
1065CFM|1808M³H |
Static Pressure |
52mmH²O|510Pa |
Noise Level |
65dBA |
Housing Material |
Cold Rolled Steel |
Impeller Design |
Mixed Flow |
Motor Type |
EC Motor |
Net Weight |
3.0kgs |
IP Rating |
IPX4 |
Dimensions(mm)
