• pic
    01

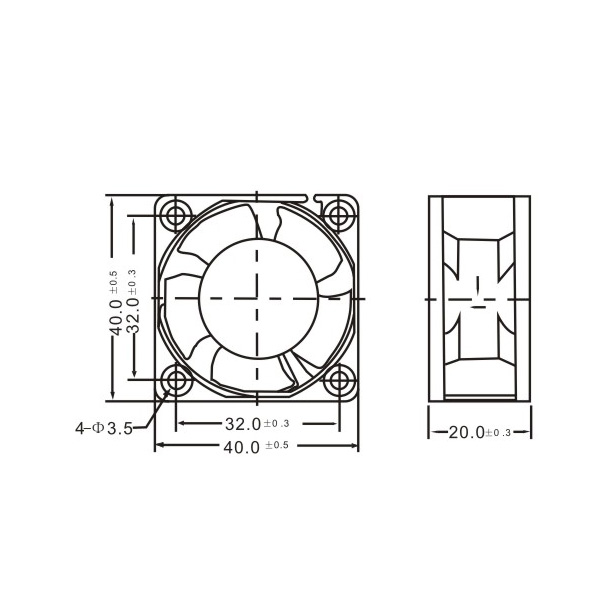

    RQD40×40×20mm

  • pic2
    02

    RQD40×40×20mm

Product Details

Model

Voltage

(V)

Current

(A)

Power

(W)

Air Volum

(CFM)

Speed

(RPM)

Noise Level

(db)

Weight

(G)

RQD4020LS

5

0.14

0.70

7.50

6000

23.9

28

RQD4020MS

5

0.16

0.80

8.10

6500

27.0

28

RQD4020HS

5

0.40

2.00

9.20

7500

31.0

28

RQD4020LS

12

0.07

0.84

7.70

6200

25.0

28

RQD4020MS

12

0.08

0.96

8.50

6900

28.5

28

RQD4020HS

12

0.10

1.20

10.10

7800

31.9

28

RQD4020LS

24

0.06

1.44

7.70

6200

25.0

28

RQD4020MS

24

0.07

1.68

8.50

6800

28.5

28

RQD4020HS

24

0.09

2.16

10.10

7800

31.9

28





General descripion of the:

each of the fans has DC brushless motor for driving,a tubulal frame and plastic impeller.they have some superior features such as large air volume,low noise,low EMl,low power consumption,hihg effciency and long life etc.They are specially used in computersystem.Office automation products,and automatic applications on the ground for air cooling and venting where there is a DC power supply.



PPLICATION COND ITIONS:

Temperature Range(℃):-20℃~+60℃B all Bearing(B)-20℃~+40℃ Sleeve Bearing(S);

Humidity permissible(%):≤90%(25℃);

Atmospheric Pressure:55kpa;

Vibration Permissible:Frequency 10Hz,Double Amplitude 1.5mm;

Impact Permissible:(peakacceleration)40m/S²;



ILLustration of the Code:
