SE-A150
SE-A150
SE-A150
6"|150mm|40Watts
594M³H|350CFM|500Pa
Main Features:

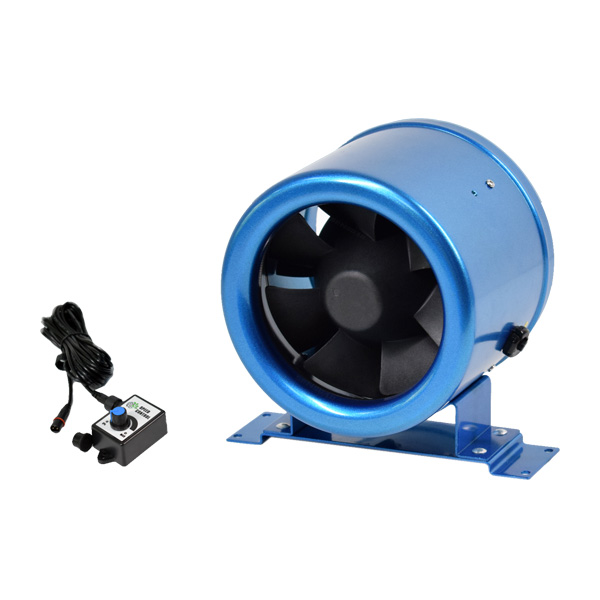

SE-A150 mixed flow in-line fan is a patented product and truly compact unit occupying the least space with very wide applications.
The fan is built with cold-rolled steel housing and jet-engine design double impellers, and equipped with the cutting-edge brushless EC motor.
Thanks to its up-to-date design in the industry, it can work on much lower power consumption and deliver greater air volume and static air pressure.
Blade Fire Proofing Grade UL94V-0
Detachable 0%-100% Speed Control(potentiometer) Included/Concealed Switch(Optional)
6-Poles Brushless Motor with Sine Wave
Double Heavy Duty NMB Ball Bearing
Locked Motor Protection [AUTO-RESTART]: Soft-Start Motor; Over-Voltage Lockout Protection
Customized Feature: PWM/Control by 0-10v/Voltage output/Tacho Output
Max. IP68 Water-proof Level Avalilable
Fan Specifications
Fan Size |
6inch |150mm |
Rated Voltage |
110V~120V |220V~240V |
Max.Power C. |
40W |
Frequency |
50Hz|60Hz |
Max. Speed |
5000RPM |
Max. Airflow |
350CFM|594M³H |
Static Pressure |
51mmH²O|500Pa |
Noise Level |
60dBA |
Housing Material |
Cold Rolled Steel |
Impeller Design |
Mixed Flow |
Motor Type |
EC Motor |
Net Weight |
1.6kgs |
IP Rating |
IPX4 |

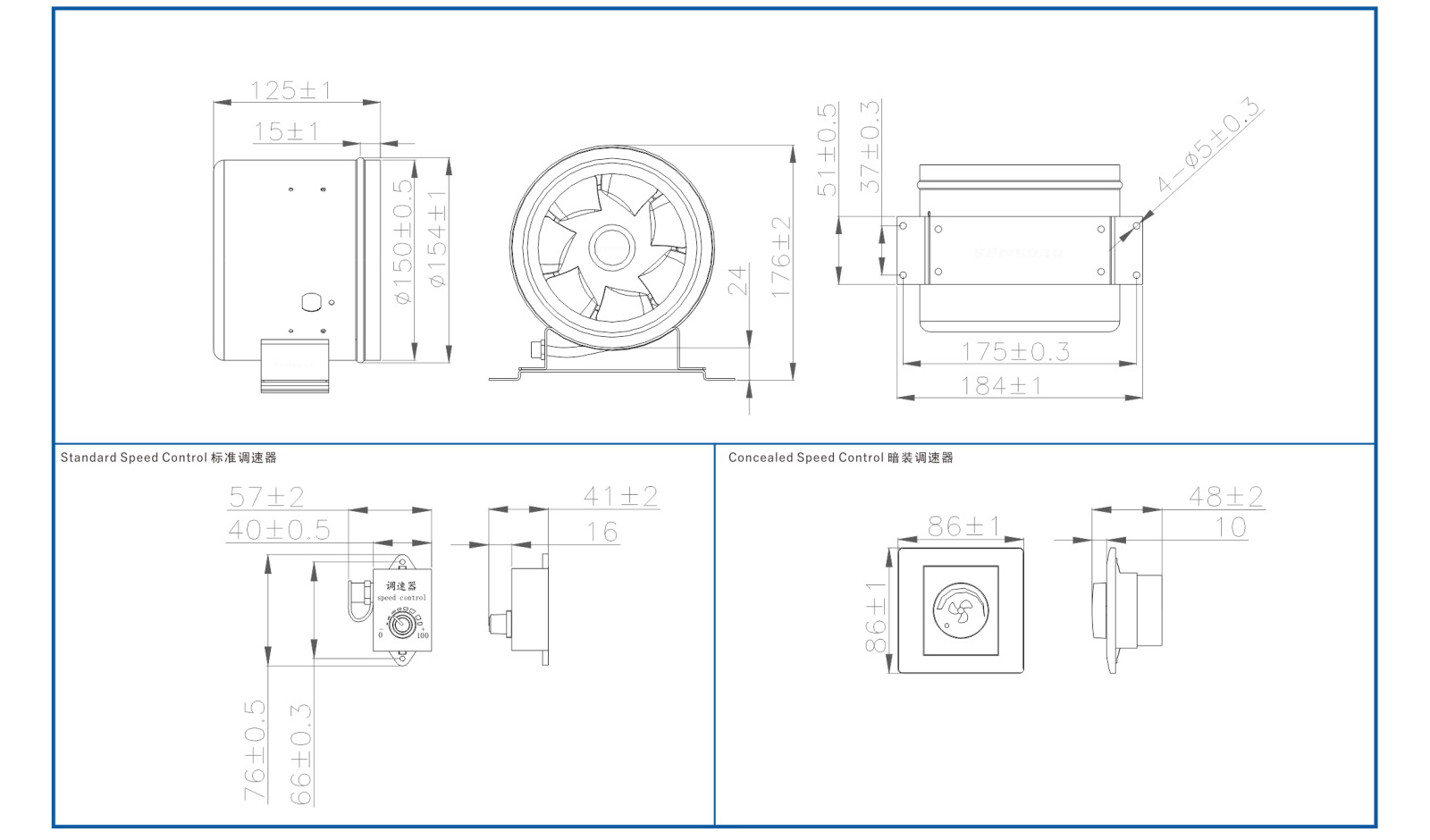

Dimensions(mm)
