• pic
    01

    RQD120×120×38mm

  • pic2
    02

    RQD120×120×38mm

  • pic3
    03

    DC12038

  • pic4
    04

    DC12038

Product Details

Model

Voltage (V)

Current (A)

Power (W)

Air Volum (CFM)

Speed (Rpm)

Noise Level (db)

Weight (G)

RQD12038MS

12

0.32

3.84

85.0

2300

35.0

250

RQD12038HS

12

0.34

4.08

90.0

2500

36.5

250

RQD12038MS

24

0.20

4.80

85.0

2300

35.0

250

RQD12038HS

48

0.18

8.64

90.0

2500

36.5

250



General description of the:

Each of the fans has DC brushless motor for driving, a tubulal frame and plastic impeller. they have some superior features such as large air volume, low noise ,low EMI, low power consumptiom, high effciency and long life etc. they are specially used in computer system. office automation products, and automatic applications on the ground for air cooling and venting where there is a DC power supply.



Application cond itons:

Temperature Range(℃):-20℃+60℃Ball Bearing(B)   -20℃+40℃Sleeve Bearing(S);

Humidity permissible(%):≤90%(25℃);

Atmospheric Pressure 55kpa;

Vibration Permissible: Frequency 10Hz,Double Amplitude 1.5mm;

Impact Permissible: (peak acceleration)40m/ S2

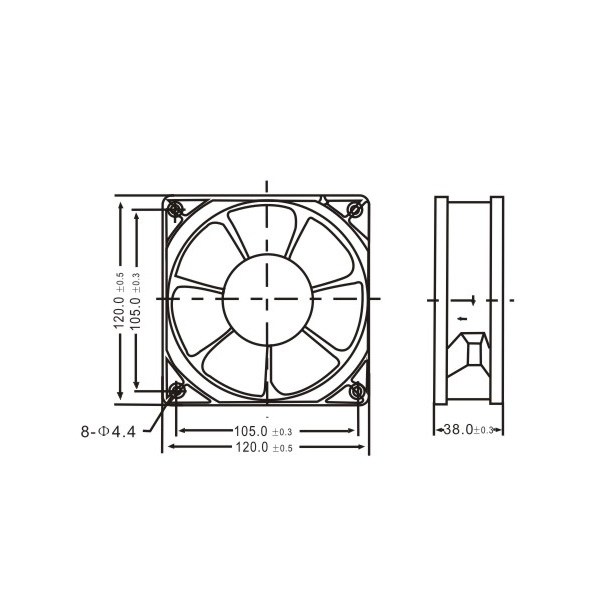

ILLustration Of The Code:





MEMORANDUM: If customers have special requests(such as changing voltage, improving insulation grade, etc. ),please contact to the technique department of our company!
