RQA4T-225
RQA4T-225
RQA4T-225

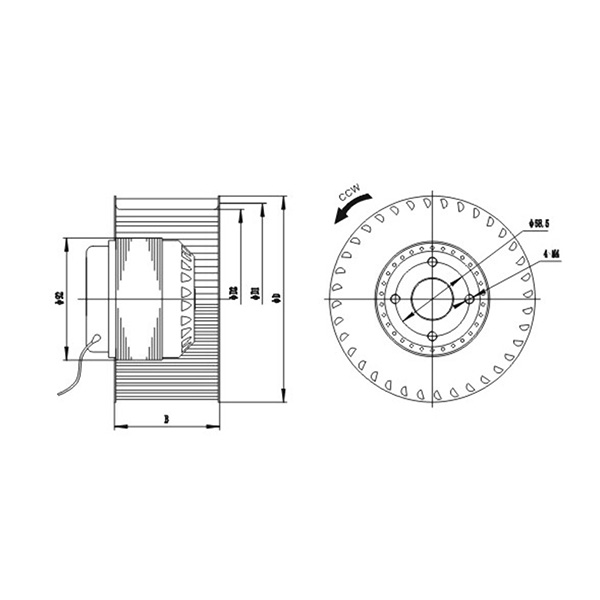

Dia. |
φD |
ΦD2 |
ΦD2 |
B |
140 |
140 |
124.5 |
120 |
30-75 |
160 |
160 |
140 |
131 |
34-92 |
180 |
180 |
160 |
150 |
32-95 |
200 |
200 |
170 |
164 |
22-102 |
225 |
224 |
192 |
185 |
42-102 |
Technical Description
● Wiring method: direct outlet 0.5 m or junction box
●Insulation class: B, F class
●Motor built-in thermal protector
●Use ambient temperature: -30~60°C
● Different speed regulation methods, voltage, frequency and ambient temperature requirements can be provided as required
Model |
Voltage (V) |
Frequency (HZ) |
Inputpower (W) |
Current AMP |
Speed R/min |
Airflow M³/min |
Noise dB(A) |
Capacitance (µF) |
APPROX.WEIGHT Kg |

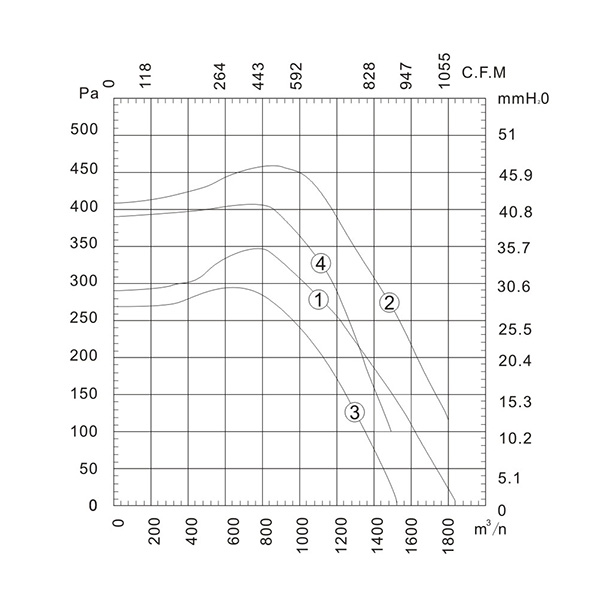

Curev |
RQA4T-225 |
400 |
50 |
450 |
0.85 |
1320 |
1850 |
75 |
- |
10.0 |
1 |
RQA4T-225 |
400 |
50 |
520 |
0.94 |
1500 |
1800 |
75 |
- |
10.0 |
2 |
RQA4S-225 |
230 |
50 |
400 |
2.10 |
1350 |
1550 |
75 |
6.0 |
10.0 |
3 |
RQA4S-225 |
230 |
60 |
500 |
2.35 |
1500 |
1500 |
76 |
6.0 |
10.0 |
4 |
