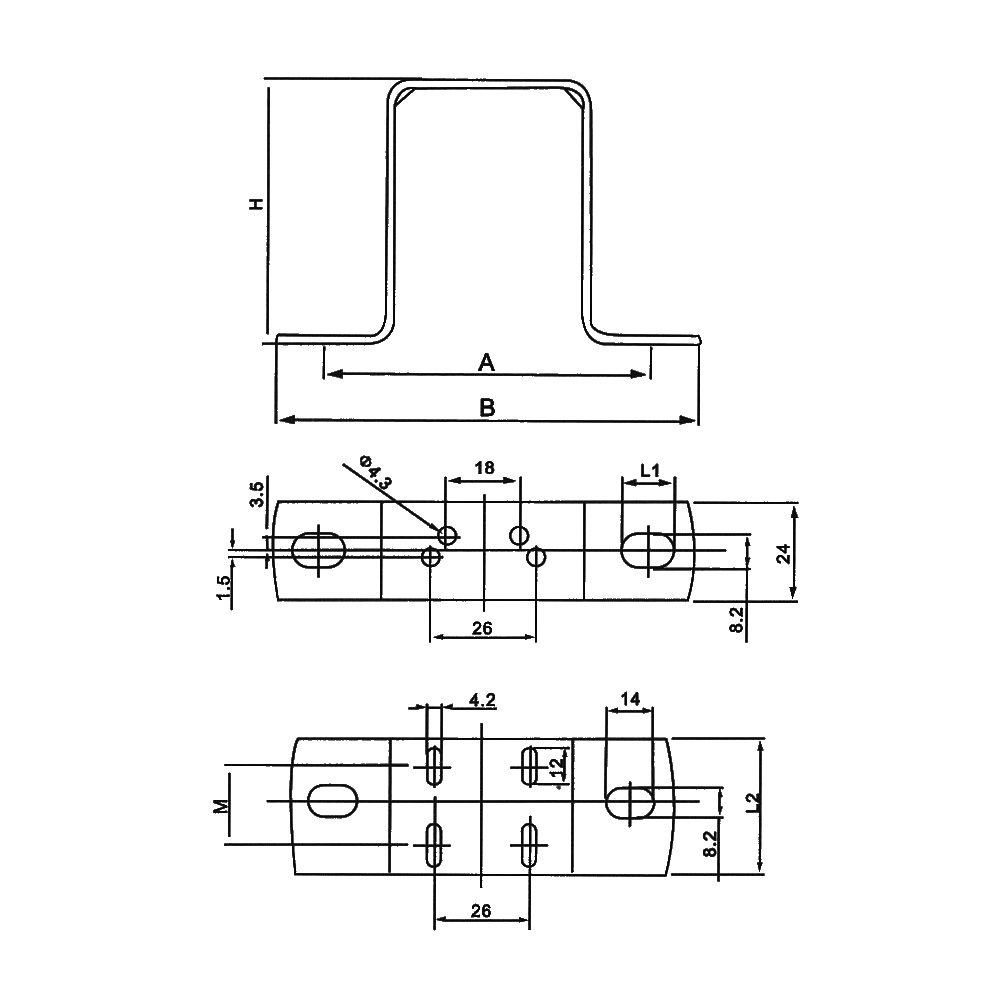

Bracket
Bracket
|
MODEL |
H |
A |
B |
L1 |
L2 |
M |
|
H55 |
55 |
81 |
106 |
13 |
- |
- |
|
H72 |
72 |
81 |
106 |
13 |
- |
- |
|
H84 |
84 |
81 |
106 |
20 |
- |
- |
|
H109-1 |
109 |
81 |
106 |
14 |
- |
- |
|
H109-2 |
109 |
78 |
100 |
14 |
39 |
21 |
|
H109-3 |
109 |
78 |
100 |
14 |
49 |
31 |
● RQA series motors are shaded pole motors with single phase, 4shaded poles and running at rated voltage of 220~240V,50/60HZ or 110~120V,60HZ. They are widely used in the radiator, evaporator and other refrigeration equipment.
● The output pole is from 5W to 34W . which is relative to the stack length.
● The insulation class of motor is B, and the protection class of that is IP42.On request IP44 is available.
● The motors are protected by their impedance for output power below 10W and thermal protector with cut-off temperature of 135℃±5℃ for outpower above 10W.
● The applicable ambient temperature is from -30℃ to ±50℃.
Illustration of Model
