• pic
    01

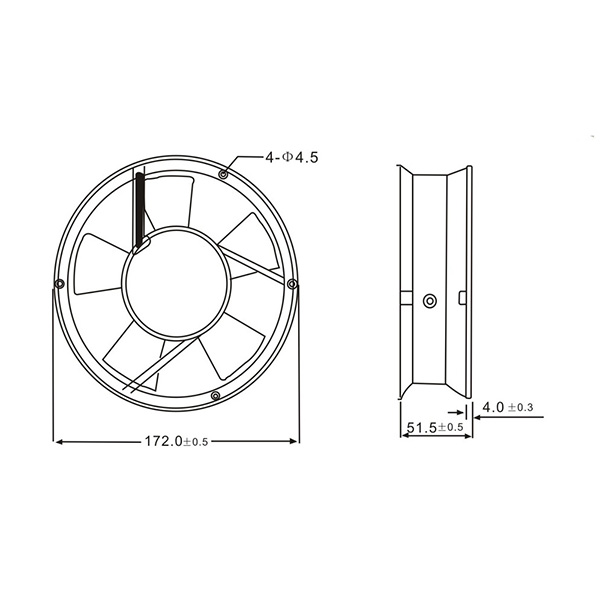

    RQA172×163×51mm

  • pic2
    02

    RQA172×163×51mm

  • pic
    01

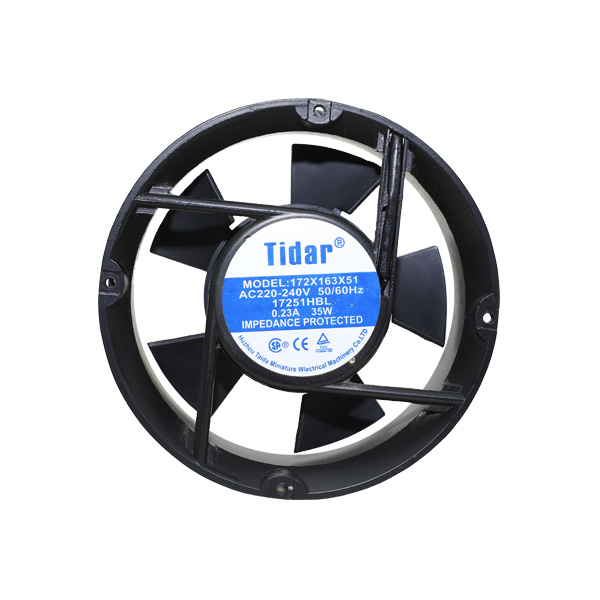

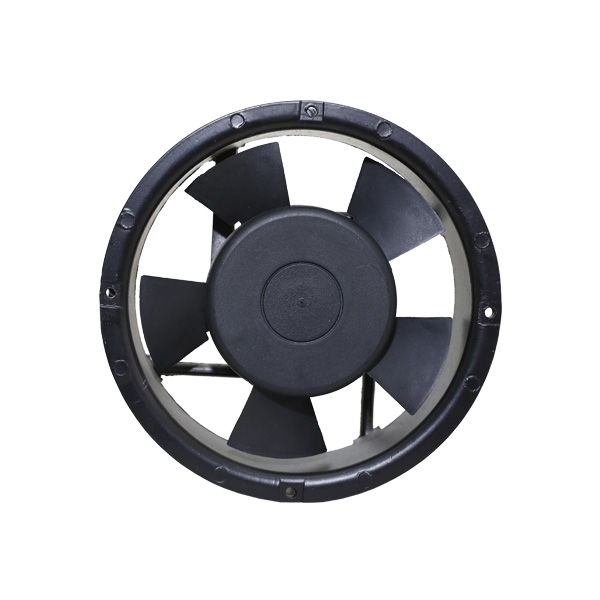

    AC17216351

  • pic2
    02

    AC17216351

Product Details

Model

Voltage (V)

Current (A)

Power (W)

Air Volum (CFM)

Speed (Rpm)

Noise Level(db)

Frequency (HZ)

RQA17251HB

110

0.47/0.46

37/35

150/170

2200/2700

65

50/60

RQA17251HB

220

0.23/0.22

37/35

150/170

2200/2700

65

50/60



General description of the:

The jakets of this series of fans are of drum-shaped aluminum alloy. The fan blades of PBT plastics and the electric motor with flange protection form an integrity. It is characterized by small size, free maintenance, easy installation, low noise, less vibration, reliable operation and excellent functioning. These fans are chiefly used for ventilation and cooling applied the automatic controlling apparatus on ground, electronic devices, medical instruments, computers, power equipment, welding machines, packing and printing equipment, satellite communication, digital controlled machinery, office appliances and etc. machines, packing and printing equipment, satellite communication, digital controlled machinery, office appliances and etc.



APPLICATION CONDITIONS:

Temperature Range(℃):-20℃~+60℃Ball Bearing (B)   -10℃~40℃Sleeve Bearing(S);

Humidity permissible(%):90%—95%;

Atmospheric Pressure (milli hg ):55kpa(G)74.8KPA(H);

Vibration Permissible: vibration Frequency 10~50Hz,low and Double Amplitude 1.5mm;

Impact Permissible: (peak acceleration)150m/ S2



ILLustration of the code:





MEMORANDUM: If customers have special requests(such as changing voltage, improving insulation grade, etc. ),please contact to the technique department of our company!

0
Views: 555

Recommended Products

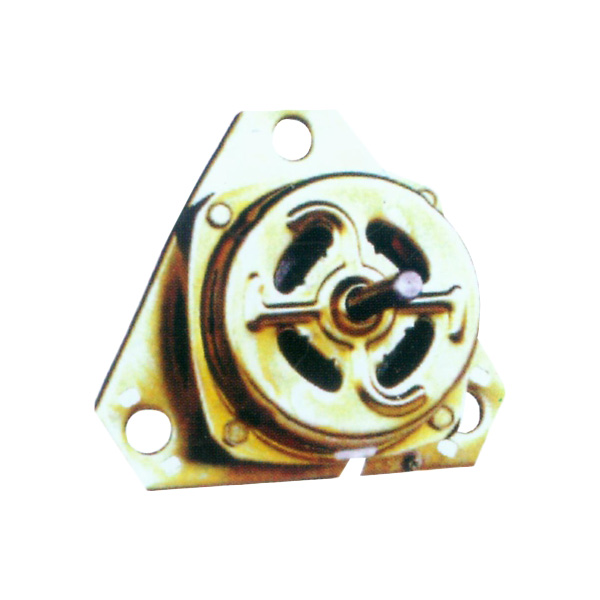

Mash-Machine Spin Motor Series
