Home / Products / Cross Flow Fan / Cross Flow Fan RQA-F4S-140

  • pic
    01

    RQA-F4S-140

  • pic2
    02

    RQA-F4S-140

  • pic3
    03

    RQA-F4S-140

Product Details

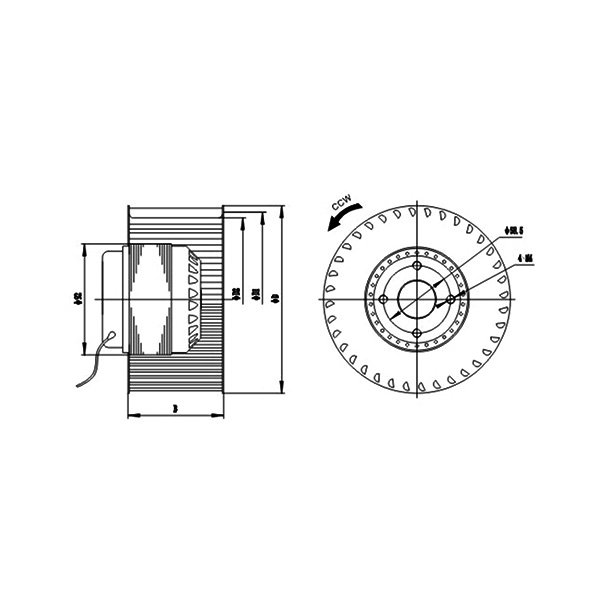

Dia.

φD

ΦD2

ΦD2

B

140

140

124.5

120

30-75

160

160

140

131

34-92

180

180

160

150

32-95

200

200

170

164

22-102

225

224

192

185

42-102



Technical Description

● Wiring method: direct outlet 0.5 m or junction box

●Insulation class: B, F class

●Motor built-in thermal protector

●Use ambient temperature: -30~60°C

● Different speed regulation methods, voltage, frequency and ambient temperature requirements can be provided as required



Model

Voltage

（V）

Frequency

（HZ）

Inputpower

（W）

Current

AMP

Speed

R/min

Airflow

M³/min

Noise

dB（A）

Capacitance

（µF）

APPROX.WEIGHT

Kg

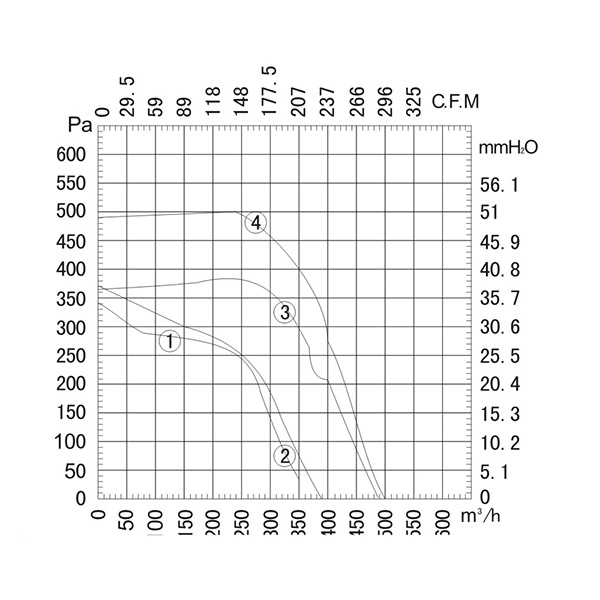

Curev

RQA-F4S-140

230

50

115

0.48

1380

380

58

2.0

2.8

1

RQA-F4S-140

230

60

120

0.53

1485

380

58

2.0

2.8

2

RQA-F4S-140

230

50

180

0.75

2385

380

71

4.0

3.0

3

RQA-F4S-140

230

60

220

0.95

2685

380

73

4.0

3.0

4
0
