• pic
    01

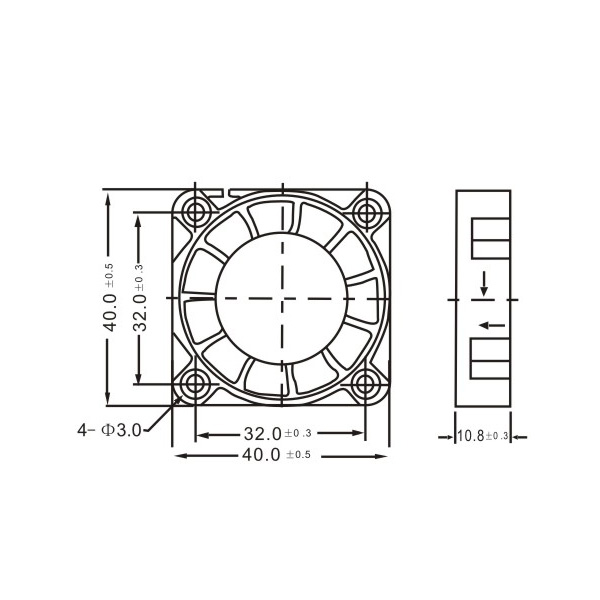

    RQD40×40×10mm

  • pic2
    02

    RQD40×40×10mm

  • pic3
    03

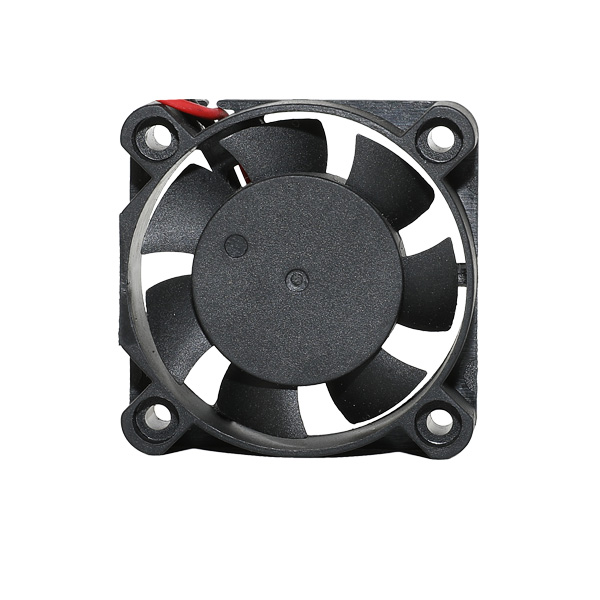

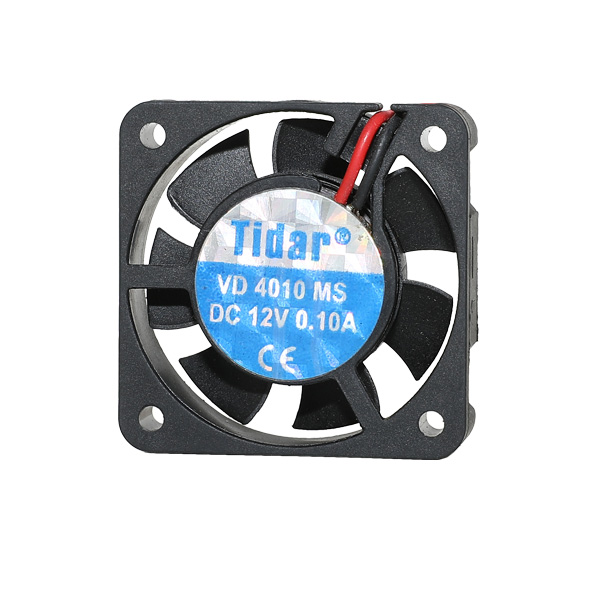

    DC4010MS

  • pic4
    04

    DC4010MS

Product Details

Model

Voltage (V)

Current (A)

Power (W)

Air Volum (CFM)

Speed (Rpm)

Noise Level (db)

Weight (G)

RQD4010LS

5

0.08

0.40

4.70

4200

14.0

14

RQD4010MS

5

0.11

0.55

5.70

4800

20.0

14

RQD4010HS

5

0.19

0.95

6.70

6000

25.0

14

RQD4010LS

12

0.07

0.84

4.70

4200

14.0

14

RQD4010MS

12

0.08

0.96

5.70

4800

20.0

14

RQD4010HS

12

0.10

1.20

6.70

6000

25.0

14

RQD4010LS

24

0.07

1.68

4.70

4200

14.0

14

RQD4010MS

24

0.08

1.92

5.70

4800

20.0

14

RQD4010HS

24

0.09

2.16

6.70

6000

25.0

14



General description of the:

Each of the fans has DC brushless motor for driving, a tubulal frame and plastic impeller. they have some superior features such as large air volume, low noise ,low EMI, low power consumptiom, high effciency and long life etc. they are specially used in computer system. office automation products, and automatic applications on the ground for air cooling and venting where there is a DC power supply.



Application cond itons:

Temperature Range(℃):-20℃+60℃Ball Bearing(B)   -20℃+40℃Sleeve Bearing(S);

Humidity permissible(%):≤90%(25℃);

Atmospheric Pressure 55kpa;

Vibration Permissible: Frequency 10Hz,Double Amplitude 1.5mm;

Impact Permissible: (peak acceleration)40m/ S2



ILLustration Of The Code:





MEMORANDUM: If customers have special requests(such as changing voltage, improving insulation grade, etc. ),please contact to the technique department of our company!
