RQA43 SERIES
RQA43 SERIES
RQA43 SERIES
MODEL |
OUTPUT |
VOLTAGE |
CURRENT |
FREQUECY |
SIZE(mm) |
||||
W. |
H.P. |
V |
A |
Hz |
A |
B |
C |
D |
|
RQA5-13/43-3001 |
5 |
1/150 |
115 |
0.36 |
60 |
66 |
16 |
12.7 |
0 |
RQA5-13/43-3051 |
5 |
1/150 |
220 |
0.18/0.16 |
50/60 |
66 |
16 |
12.7 |
0 |
RQA10-20/43-3201 |
10 |
1/70 |
115 |
0.62 |
60 |
72 |
16 |
19.0 |
10 |
RQA10-20/43-3251 |
10 |
1/70 |
220 |
0.34/0.31 |
50/60 |
72 |
16 |
19.0 |
10 |
RQA18-25/43-3401 |
18 |
1/40 |
115 |
1.01 |
60 |
78 |
16 |
25.4 |
15.5 |
RQA18-25/43-3451 |
18 |
1/40 |
220 |
0.55/0.50 |
50/60 |
78 |
16 |
25.4 |
15.5 |
RQA22-30/43-3501 |
22 |
1/34 |
115 |
1.00 |
60 |
85 |
30 |
31.8 |
15.5 |
RQA22-30/43-3551 |
22 |
1/34 |
220 |
0.53 |
50/60 |
85 |
30 |
31.8 |
15.5 |
● RQA series motors are shaded pole motors with single phase, 4shaded poles and running at rated voltage of 220~240V,50/60HZ or 110~120V,60HZ. They are widely used in the radiator, evaporator and other refrigeration equipment.
● The output pole is from 5W to 34W . which is relative to the stack length.
● The insulation class of motor is B, and the protection class of that is IP42.On request IP44 is available.
● The motors are protected by their impedance for output power below 10W and thermal protector with cut-off temperature of 135℃±5℃ for outpower above 10W.
● The applicable ambient temperature is from -30℃ to ±50℃.

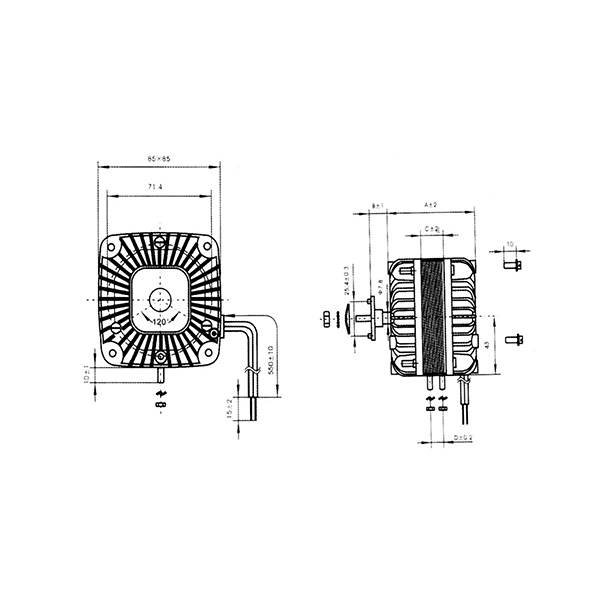

Illustration of Model
