Product Details

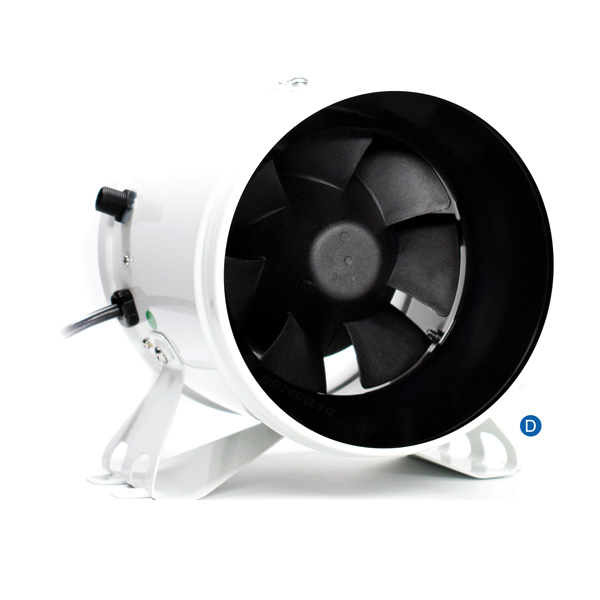

SE-A150Z

6"|150mm|40Watts

594M³H|350CFM|500Pa

Main Features:

SE-A150Z mixed ftlow in-line fan is a truly compact unit with easier duct connections on both sides

The fan is built with cold-rolled steel housing and jet-engine design double impellers, and equipped with the cutting-edge brushless EC motor.

Thanks to its up-to-date design in the industry. it can work on much lower power consumption and deliver greater ait volume and static air pressure.

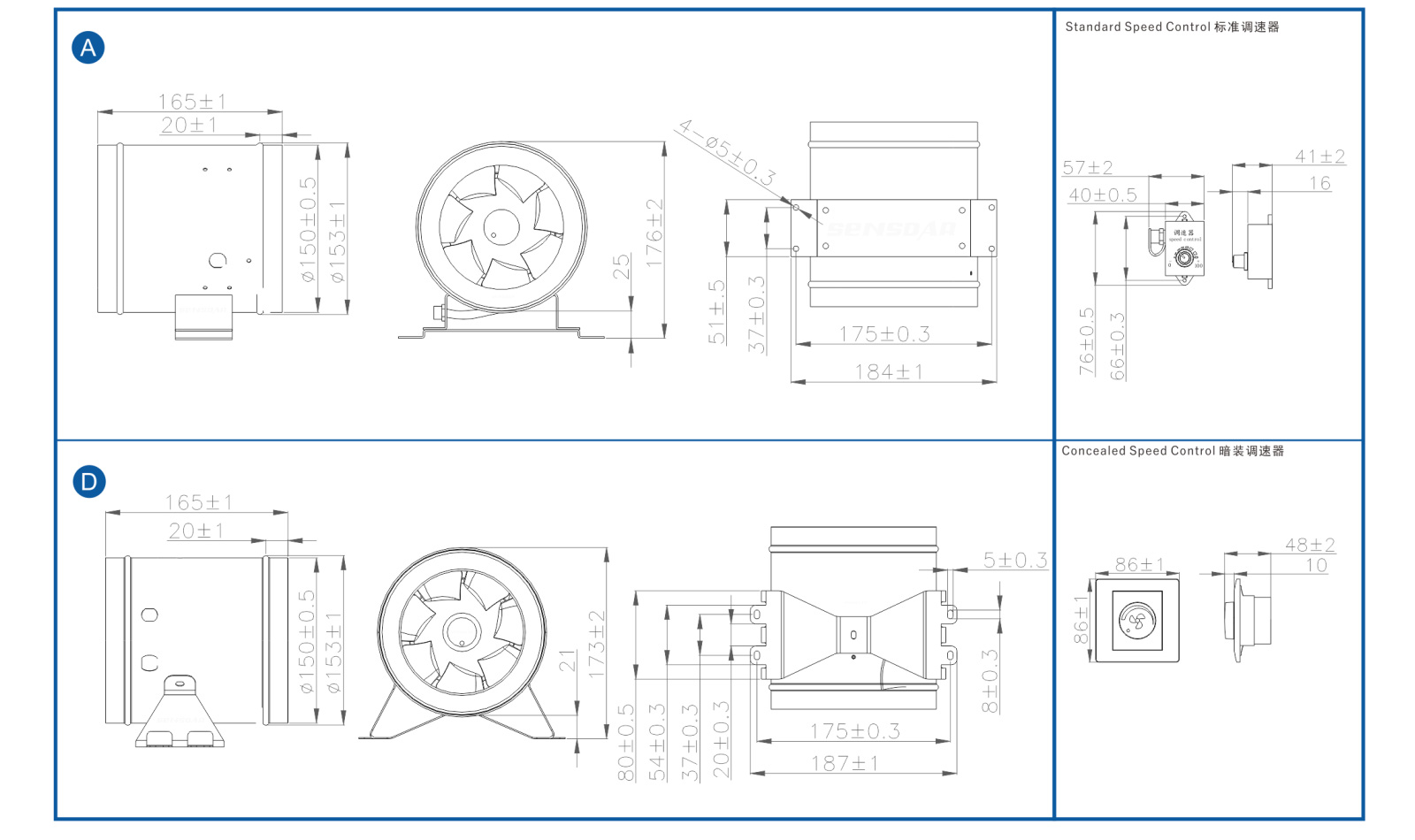

Easier Duct Connection Design with Detachable Bracket(model D) D

Blade Fire Proofing Grade UL94V-0

Detachable 0%-100% Speed Control(potentiometer) Included/Concealed Switch (Optional)

6-Poles Brushless Motor with Sine Wave

Double Heavy Duty NMB Ball Bearing

Locked Motor Protection [AUTO-RESTART]; Soft-Start Motor; Over-Voltage Lockout Protection

Customized Feature: PWM/Control by 0-10v/Voltage output/Tacho Output

Max. IP68 Water-proof Level Available
