• pic
    01

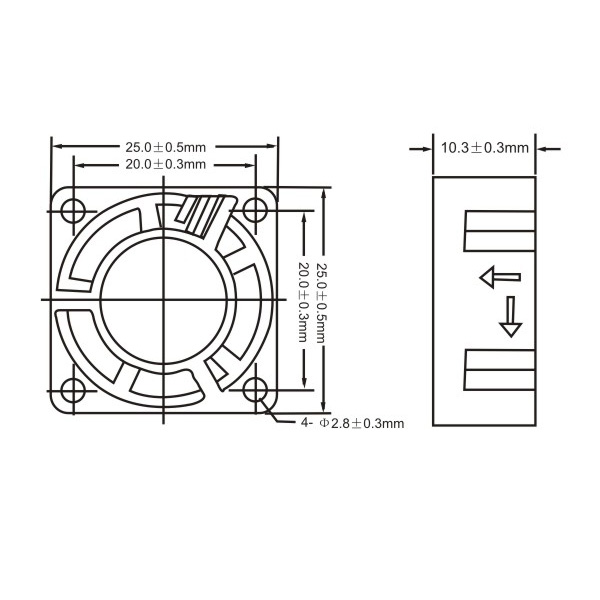

    RQD25×25×10mm

  • pic2
    02

    RQD25×25×10mm

Product Details

Model

Voltage (V)

Current (A)

Power (W)

Air Volum (CFM)

Speed (Rpm)

Noise Level (db)

RQD2510HS

5

0.25

1.25

2.11

12000

29

RQD2510MS

5

0.16

0.80

1.60

1000

23

RQD2510LS

5

0.14

0.70

1.22

7000

21

RQD2510HS

12

0.12

1.44

2.11

12000

29

RQD2510MS

12

0.09

1.08

1.60

10000

23

RQD2510LS

12

0.05

0.60

1.22

7000

21





General description of the:

Each of the fans has DC brushless motor for driving, a tubulal frame and plastic impeller. they have some superior features such as large air volume, low noise ,low EMI, low power consumptiom, high effciency and long life etc. they are specially used in computer system. office automation products, and automatic applications on the ground for air cooling and venting where there is a DC power supply.



Application cond itons:

Temperature Range(℃):-20℃+60℃Ball Bearing(B)   -20℃+40℃Sleeve Bearing(S);

Humidity permissible(%):≤90%(25℃);

Atmospheric Pressure 55kpa;

Vibration Permissible: Frequency 10Hz,Double Amplitude 1.5mm;

Impact Permissible: (peak acceleration)40m/ S2



ILLustration Of The Code:





MEMORANDUM: If customers have special requests(such as changing voltage, improving insulation grade, etc. ),please contact to the technique department of our company!

1+
Views: 1,063

Recommended Products

Axial Fan Motor Φ400 SERIES

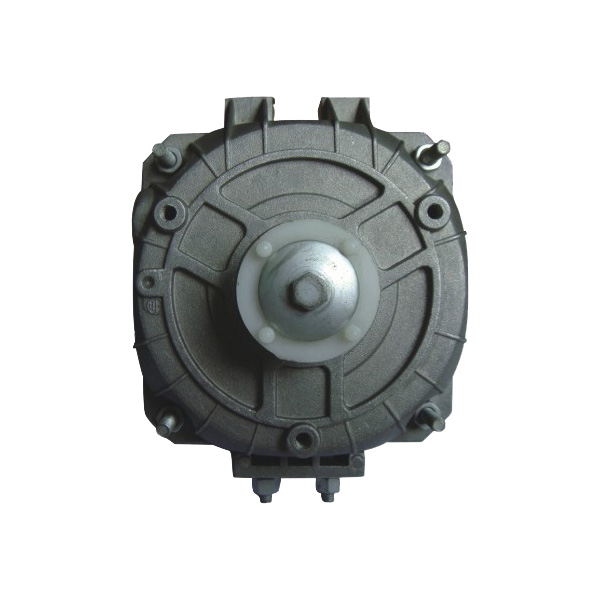

Water Pump Motor
RQA172×163×51mm

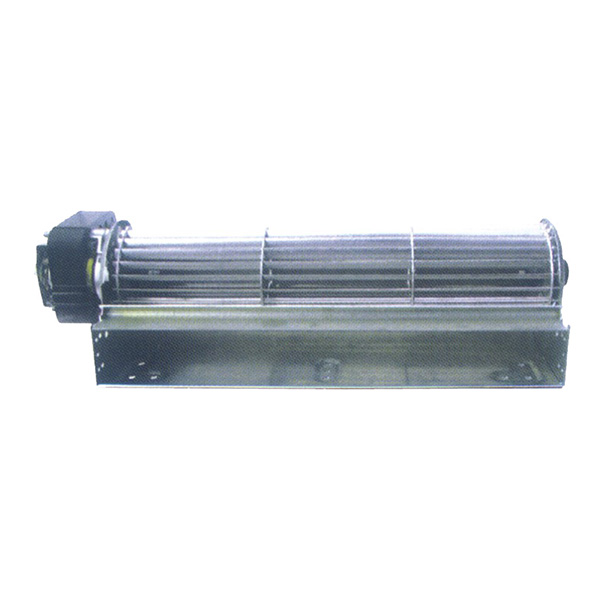

Cross Flow Fan RQA315
