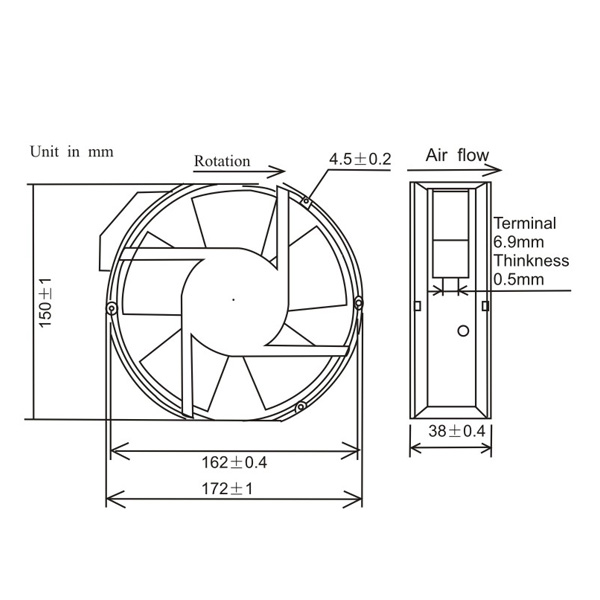

RQA172×150×38mm
RQA172×150×38mm

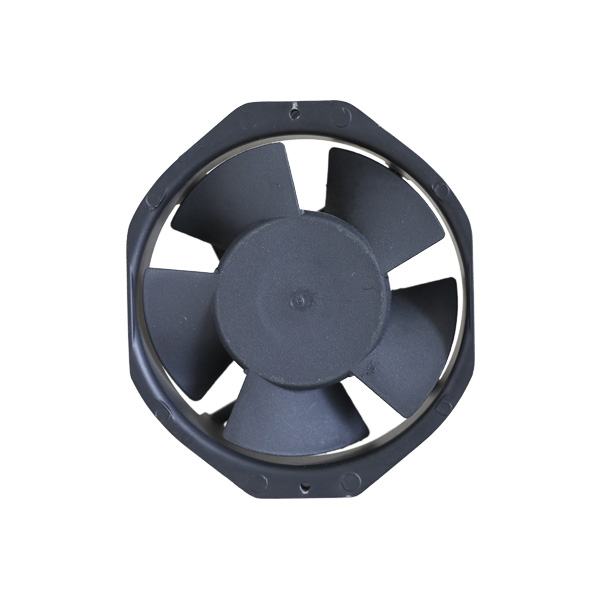

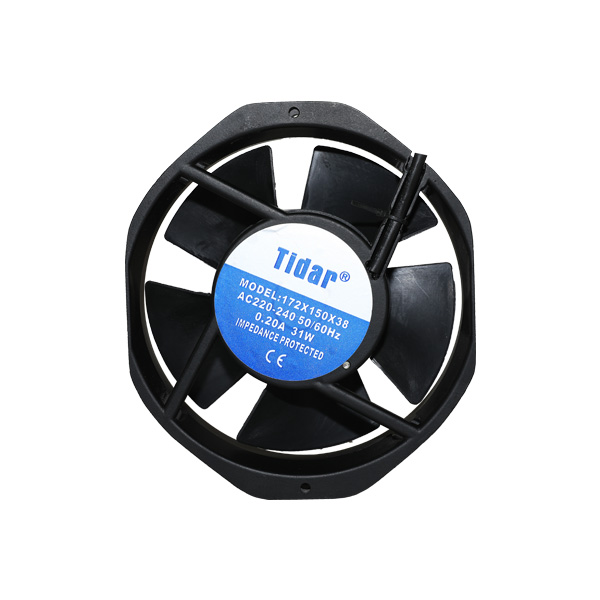

AC17215038
AC17215038

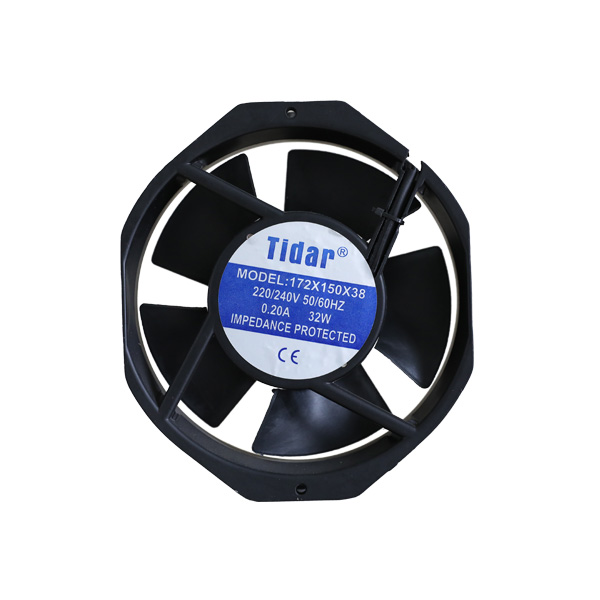

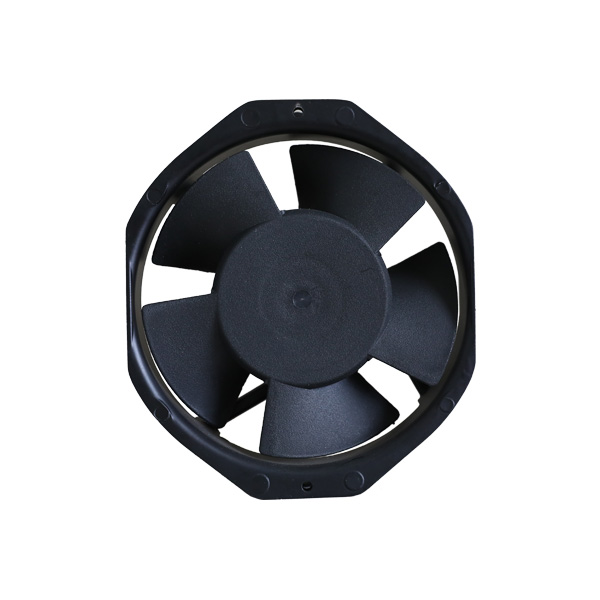

AC17215038-32W
AC17215038-32W
Housing:Die-Cast Alumium Painted Blade:Plastic P.B.T.
Insulation Resistance:10MΩ at500VDC between lead and frame Dielectric Strength:1 min at 1500VAC/50-60HZ,
Current<5mA operation
Temperature:-20℃C~80℃C Operation Humidity:20%~85% working voltage:85V~125V for 110V and 190V~250V for220V
Life at 25℃:Ball bearing 60,000hr and sleeve bearing30,000hr
Model |
Voltage (V) |
Current (A) |
Power (W) |
Air Volum (CFM) |
Speed (Rpm) |
Noise Level(db) |
Frequency (HZ) |
Pressure MmH2O |
Weight g |
Bearing Style |
RQA1538A1HSL |
110 |
0.40/0.35 |
32/30 |
150/170 |
2300/2500 |
48/51 |
50/60 |
11/15 |
760 |
S |
RQA1538A1HSL |
110 |
0.40/0.35 |
32/30 |
150/170 |
2300/2500 |
48/51 |
50/60 |
11/15 |
760 |
B |
RQA1538A2HSL |
220 |
0.20/0.18 |
32/30 |
150/170 |
2300/2500 |
48/51 |
50/60 |
11/15 |
760 |
S |
RQA1538A2HSL |
220 |
0.20/0.18 |
32/30 |
150/170 |
2300/2500 |
48/51 |
50/60 |
11/15 |
760 |
B |
General description of the:
The jakets of this series of fans are of drum-shaped aluminum alloy. The fan blades of PBT plastics and the electric motor with flange protection form an integrity. It is characterized by small size, free maintenance, easy installation, low noise, less vibration, reliable operation and excellent functioning. These fans are chiefly used for ventilation and cooling applied the automatic controlling apparatus on ground, electronic devices, medical instruments, computers, power equipment, welding machines, packing and printing equipment, satellite communication, digital controlled machinery, office appliances and etc. machines, packing and printing equipment, satellite communication, digital controlled machinery, office appliances and etc.
APPLICATION CONDITIONS:
Temperature Range(℃):-20℃~+60℃Ball Bearing (B) -10℃~40℃Sleeve Bearing(S);
Humidity permissible(%):90%—95%;
Atmospheric Pressure (milli hg ):55kpa(G)74.8KPA(H);
Vibration Permissible: vibration Frequency 10~50Hz,low and Double Amplitude 1.5mm;
Impact Permissible: (peak acceleration)150m/ S2
ILLustration of the code:
MEMORANDUM: If customers have special requests(such as changing voltage, improving insulation grade, etc. ),please contact to the technique department of our company!
