• pic
    01

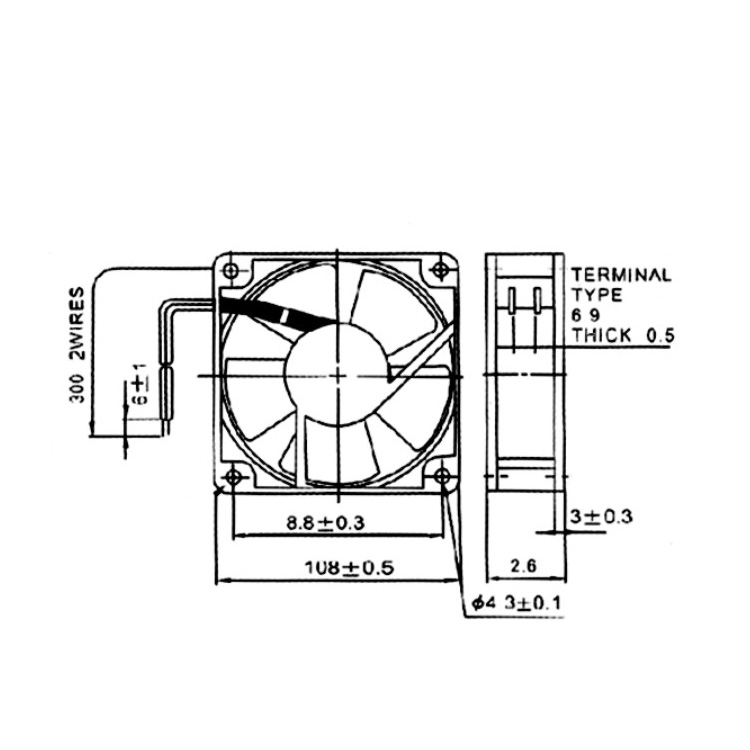

    RQA108×108×26mm

  • pic2
    02

    RQA108×108×26mm

Product Details

Model

Voltage (V)

Current (A)

Power (W)

Air Volum (CFM)

Speed (Rpm)

Noise Level(db)

Frequency (HZ)

RQA10826HBL

110

0.22/0.21

16/15

30/35

2000/2100

39/41

50/60

RQA10826HBL

220

0.08/0.07

17/16

30/35

2100/2200

40/41

50/60

RQA10826HSL

110

0.22/0.21

16/15

30/35

2000/2100

39/41

50/60

RQA10826HSL

220

0.08/0.07

17/16

30/35

2100/2200

40/41

50/60



General description of the:

The jakets of this series of fans are of drum-shaped aluminum alloy. The fan blades of PBT plastics and the electric motor with flange protection form an integrity. It is characterized by small size, free maintenance, easy installation, low noise, less vibration, reliable operation and excellent functioning. These fans are chiefly used for ventilation and cooling applied the automatic controlling apparatus on ground, electronic devices, medical instruments, computers, power equipment, welding machines, packing and printing equipment, satellite communication, digital controlled machinery, office appliances and etc. machines, packing and printing equipment, satellite communication, digital controlled machinery, office appliances and etc.



APPLICATION CONDITIONS:

Temperature Range(℃):-20℃~+60℃Ball Bearing (B)   -10℃~40℃Sleeve Bearing(S);

Humidity permissible(%):90%—95%;

Atmospheric Pressure (milli hg ):55kpa(G)74.8KPA(H);

Vibration Permissible: vibration Frequency 10~50Hz,low and Double Amplitude 1.5mm;

Impact Permissible: (peak acceleration)150m/ S2



ILLustration of the code:







MEMORANDUM: If customers have special requests(such as changing voltage, improving insulation grade, etc. ),please contact to the technique department of our company!

0
Views: 895

Recommended Products

Shaded Pole Motor
Fan Motor SE-A150J
RQD120×120×38mm

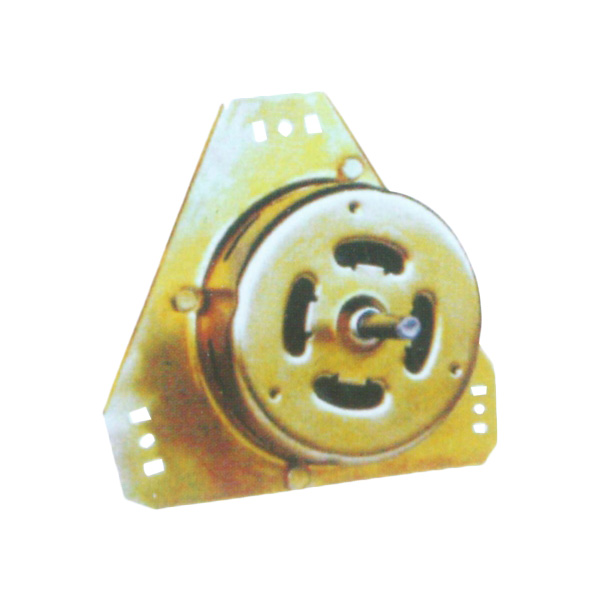

Washing Machine Motor Series
