• pic1

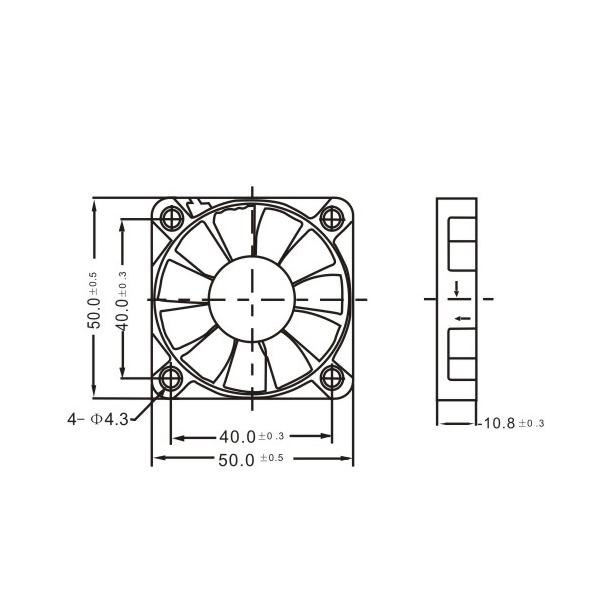

    01

    RQD50×50×10mm

  • pic2
    02

    RQD50×50×10mm

  • pic3
    03

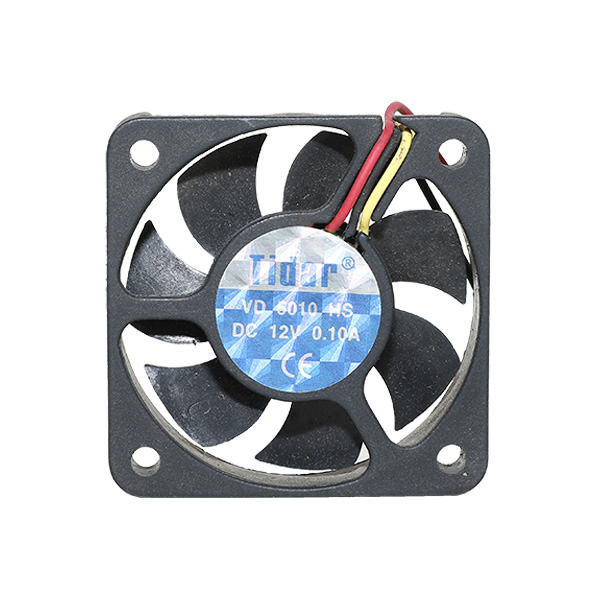

    DC5010HS

  • pic4
    04

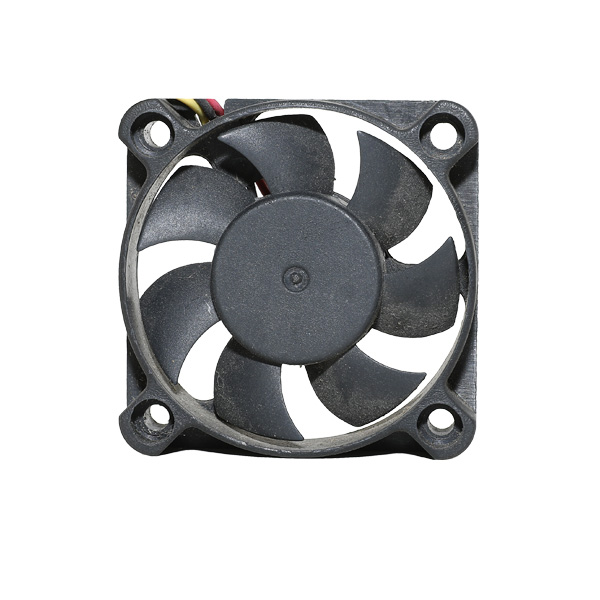

    DC5010HS

  • pic5
    05

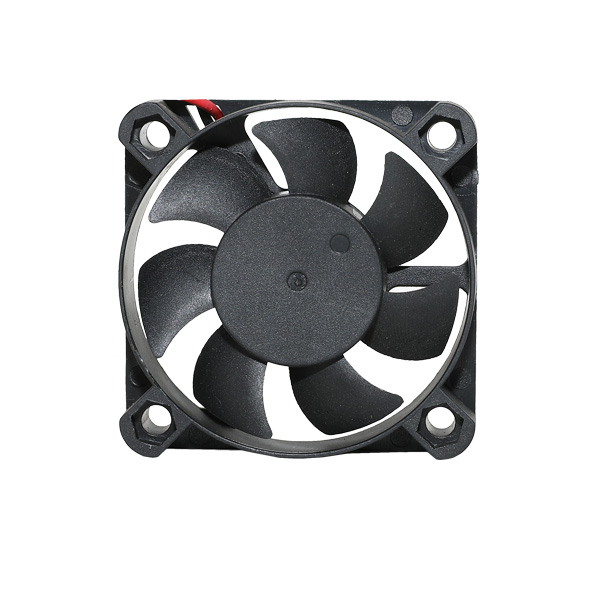

    DC5010MS

  • pic6
    06

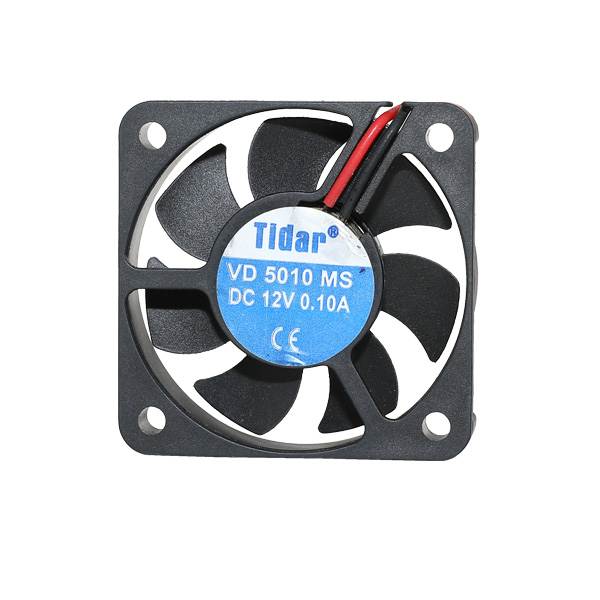

    DC5010MS

Product Details

Model

Voltage (V)

Current (A)

Power (W)

Air Volum (CFM)

Speed (Rpm)

Noise Level (db)

Weight (G)

RQD5010LS

5

0.12

0.60

9.00

3700

20.0

18

RQD5010MS

5

0.18

0.90

10.50

4300

24.0

18

RQD5010HS

5

0.23

1.15

11.20

5000

26.0

18

RQD5010LS

12

0.06

0.72

9.00

3700

20.0

18

RQD5010MS

12

0.07

0.84

10.50

4300

240.

18

RQD5010HS

12

0.09

1.08

11.20

5000

26.0

18

RQD5010LS

24

0.07

1.68

9.00

3700

20.0

18

RQD5010MS

24

0.09

1.92

10.50

4300

24.0

18

RQD5010HS

24

0.09

2.16

11.20

5000

26.0

18



General description of the:

Each of the fans has DC brushless motor for driving, a tubulal frame and plastic impeller. they have some superior features such as large air volume, low noise ,low EMI, low power consumptiom, high effciency and long life etc. they are specially used in computer system. office automation products, and automatic applications on the ground for air cooling and venting where there is a DC power supply.



Application cond itons:

Temperature Range(℃):-20℃+60℃Ball Bearing(B)   -20℃+40℃Sleeve Bearing(S);

Humidity permissible(%):≤90%(25℃);

Atmospheric Pressure 55kpa;

Vibration Permissible: Frequency 10Hz,Double Amplitude 1.5mm;

Impact Permissible: (peak acceleration)40m/ S2



ILLustration Of The Code:





MEMORANDUM: If customers have special requests(such as changing voltage, improving insulation grade, etc. ),please contact to the technique department of our company!

0
Views: 1,008

Recommended Products

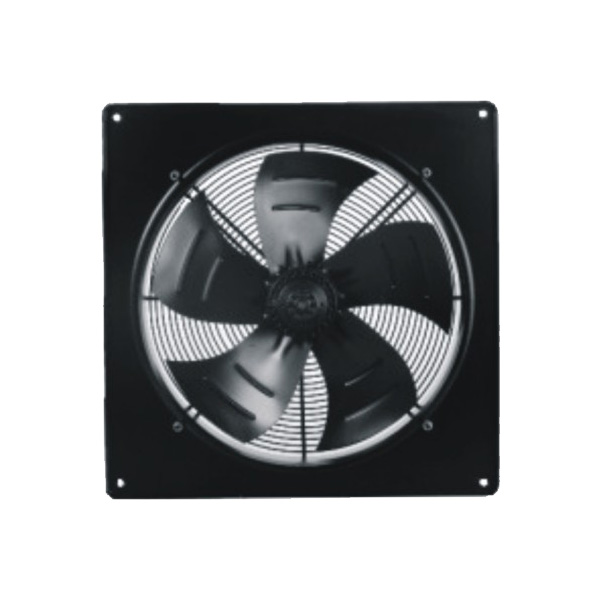

Axial Fan Motor RQA350/S
