C FRAME SHADED POLE MOTOR
C FRAME SHADED POLE MOTOR
|
MODEL |
VOLTAGE |
FREQUENCY |
CURRENT |
SPEED |
INPUT |
|
V |
Hz |
A |
r/min |
W |
|
|
RQAF3213 |
127 |
60 |
0.28 |
2800 |
17 |
|
RQAF3206 |
220 |
50/60 |
0.23 |
2400 |
27 |
● RQA series motors are shaded pole motors with single phase, 4shaded poles and running at rated voltage of 220~240V,50/60HZ or 110~120V,60HZ. They are widely used in the radiator, evaporator and other refrigeration equipment.
● The output pole is from 5W to 34W . which is relative to the stack length.
● The insulation class of motor is B, and the protection class of that is IP42.On request IP44 is available.
● The motors are protected by their impedance for output power below 10W and thermal protector with cut-off temperature of 135℃±5℃ for outpower above 10W.
● The applicable ambient temperature is from -30℃ to ±50℃.

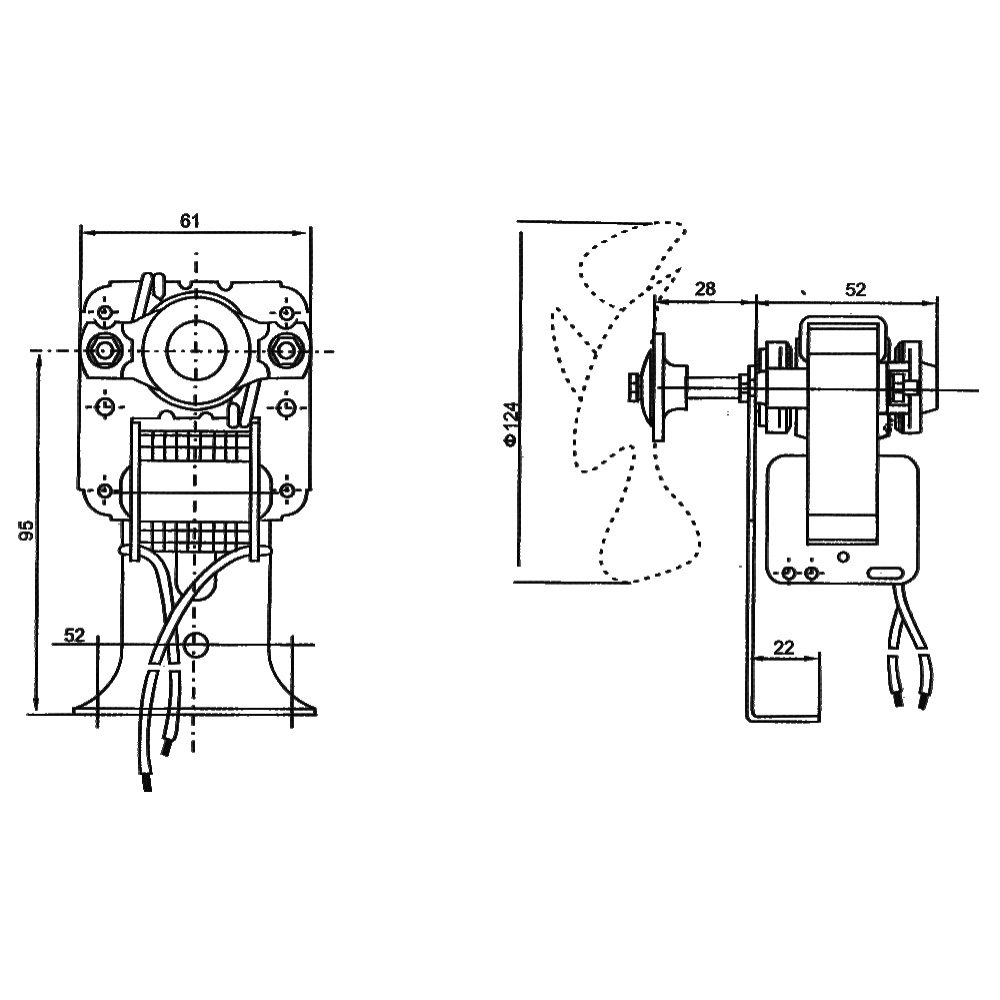

Illustration of Model
