• pic
    01

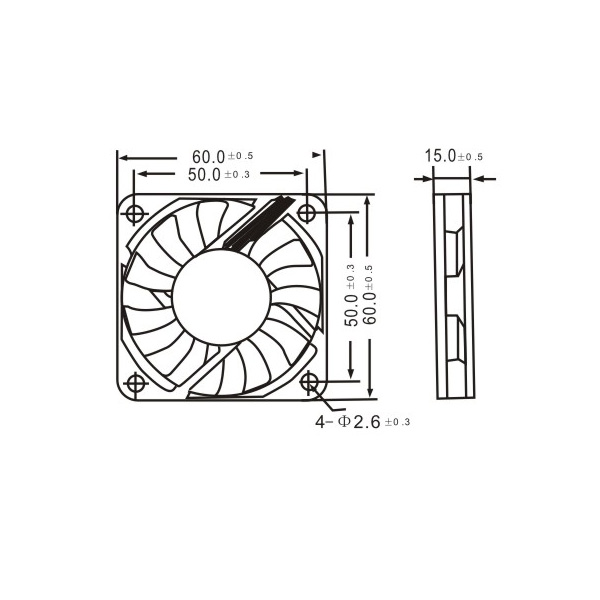

    RQD60×60×15mm

  • pic2
    02

    RQD60×60×15mm

  • pic3
    03

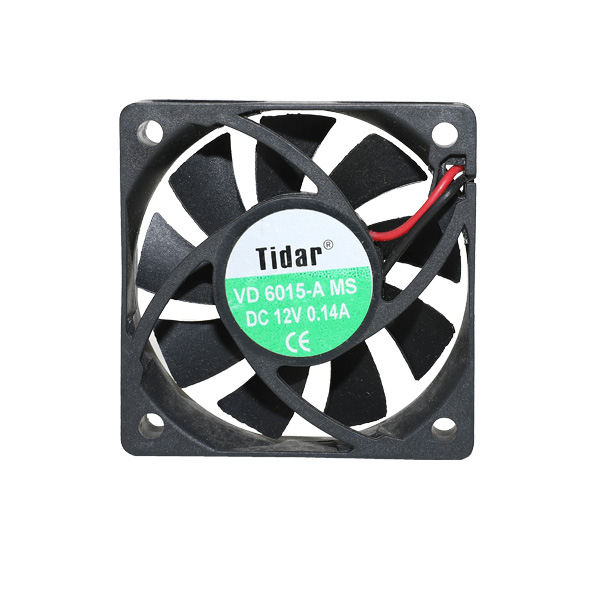

    DC6015-AMS-2

  • pic4
    04

    DC6015-AMS

Product Details

Model

Voltage (V)

Current (A)

Power (W)

Air Volum (CFM)

Speed (Rpm)

Noise Level (db)

Weight (G)

RQD6015LS

5

0.20

1.00

12.00

3500

27.2

39

RQD6015MS

5

0.25

1.25

14.20

3900

28.8

39

RQD6015HS

5

0.37

1.85

16.6

4500

32.4

39

RQD6015LS

12

0.09

1.08

12.00

3600

27.2

39

RQD6015MS

12

0.11

1.32

14.20

3900

28.8

39

RQD6015HS

12

0.13

1.56

16.60

4500

32.4

39

RQD6015LS

24

0.07

1.68

14.20

3900

28.8

39

RQD6015MS

24

0.08

1.92

15.50

4200

30.8

39

RQD6015HS

24

0.09

2.16

16.20

4500

32.4

39



General description of the:

Each of the fans has DC brushless motor for driving, a tubulal frame and plastic impeller. they have some superior features such as large air volume, low noise ,low EMI, low power consumptiom, high effciency and long life etc. they are specially used in computer system. office automation products, and automatic applications on the ground for air cooling and venting where there is a DC power supply.



Application cond itons:

Temperature Range(℃):-20℃+60℃Ball Bearing(B)   -20℃+40℃Sleeve Bearing(S);

Humidity permissible(%):≤90%(25℃);

Atmospheric Pressure 55kpa;

Vibration Permissible: Frequency 10Hz,Double Amplitude 1.5mm;

Impact Permissible: (peak acceleration)40m/ S2



ILLustration Of The Code:





MEMORANDUM: If customers have special requests(such as changing voltage, improving insulation grade, etc. ),please contact to the technique department of our company!
