• pic
    01

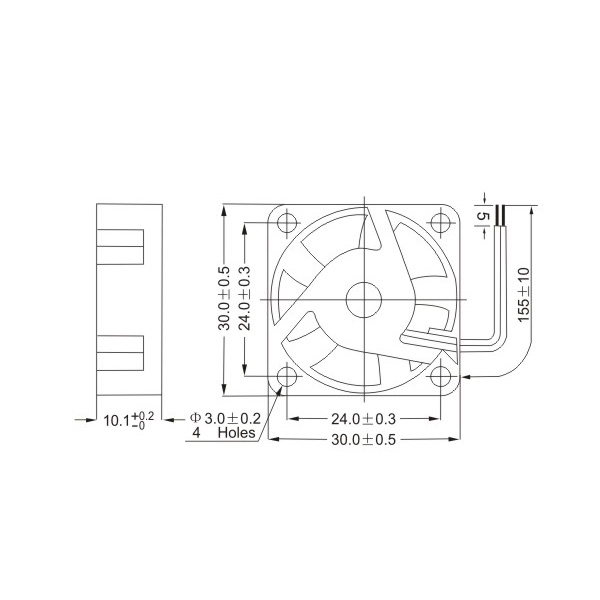

    RQD30×30×10mm

  • pic2
    02

    RQD30×30×10mm

Product Details

Model

Voltage (V)

Current (A)

Power (W)

Air Volum (CFM)

Speed (Rpm)

Noise Level (db)

RQD3010HS

5

0.23

1.15

4.09

10000

32

RQD3010MS

5

0.17

0.85

3.19

8000

23

RQD3010LS

5

0.10

0.50

2.49

6000

19

RQD3010HS

12

0.12

1.44

4.09

10000

32

RQD3010MS

12

0.07

0.84

3.19

8000

23

RQD3010LS

12

0.05

0.60

2.49

6000

19



General description of the:

Each of the fans has DC brushless motor for driving, a tubulal frame and plastic impeller. they have some superior features such as large air volume, low noise ,low EMI, low power consumptiom, high effciency and long life etc. they are specially used in computer system. office automation products, and automatic applications on the ground for air cooling and venting where there is a DC power supply.



Application cond itons:

Temperature Range(℃):-20℃+60℃Ball Bearing(B)   -20℃+40℃Sleeve Bearing(S);

Humidity permissible(%):≤90%(25℃);

Atmospheric Pressure 55kpa;

Vibration Permissible: Frequency 10Hz,Double Amplitude 1.5mm;

Impact Permissible: (peak acceleration)40m/ S2



ILLustration Of The Code:



MEMORANDUM: If customers have special requests(such as changing voltage, improving insulation grade, etc. ),please contact to the technique department of our company!
