RQA250ZY
pic2
02

RQA250ZY

Product Details

Model	Voltage (V)	Frequency (HZ)	Phase	Inputpower (W)	Current AMP	Speed R/min	Airflow M³/min	Noise dB(A)	Weight (kg)	Capacitance (µF)	Bearing Type
RQA250ZY-4C	110	50	1	40	0.60	1300	12	60	2.9	10µF/250V	B
RQA250ZY-4E	220	50	1	40	0.25	1300	12	60	2.9	3.0µF/250V	B
RQA250ZY-4D	380	50	3	40	0.15	1300	12	60	2.9	/	B
RQA250ZY-4D1	380	50	1	40	0.12	1300	12	60	2.9	2.0µF/500V	B
RQA250ZY-2E	220	50	1	100	0.50	2600	20	72	2.9	4.0µF/500V	B
RQA250ZY-2D	380	50	3	100	0.20	2600	20	72	2.9	/	B
RQA250ZY-2D1	380	50	1	100	0.35	2600	20	72	2.9	2.0µF/500V	B
RQA250ZY-4C	110	50	1	80	0.70	1300	22	72	3.8	10µF/500V	B
RQA250ZY-4E	220	50	1	80	0.40	1300	22	65	3.8	4.0µF/500V	B
RQA250ZY-4D	380	50	3	80	0.20	1300	22	65	3.8	/	B
RQA250ZY-4D1	380	50	1	80	0.22	1300	22	65	3.8	2.0µF/500V	B
RQA250ZY-2E	220	50	1	160	0.80	2600	34	70	3.8	3.0µF/500V	B
RQA250ZY-2D	380	50	3	160	0.45	2600	34	70	3.8	/	B
RQA250ZY-2D1	380	50	1	160	0.50	2600	34	70	3.8	2.4µF/500V	B

●The insulation class of the RQA series axial fan motor is F, and the protection class of that is IP54. All the motors have thermal protector in the winding.

●Voltage: The voltage of the single phase motor is 220V/50HZ, and the voltage of the three phases motor is 380V/50HZ, We can also supply other fan motors with different voltages and frequencies ac-cording to clients, requirement.

●The standard length of the electrical wire on the fan is 1.5m, and we also supply the fan mo-tors with connection box for clints, choises.

●The applicable ambient temperature of the fan motors used in condenser is from 0℃ to +60℃. The applicable ambient temperature of the fan motors used in evaporator is -30℃ to 0℃.

●The average service life of motors is over 30000 hours.

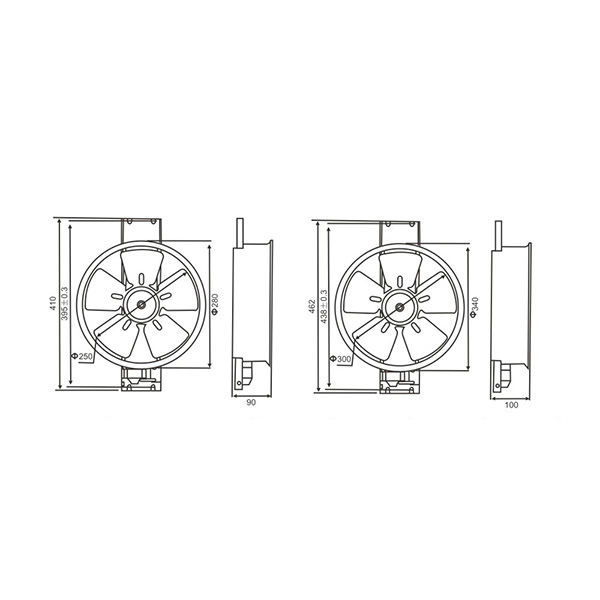

ILLustration Of Model
