RQA250
RQA250
RQA250
RQA250
RQA250

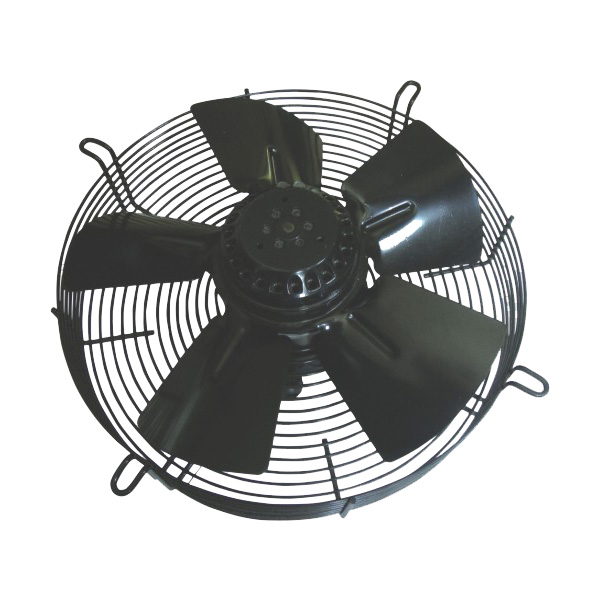

RQA300
RQA300
RQA300

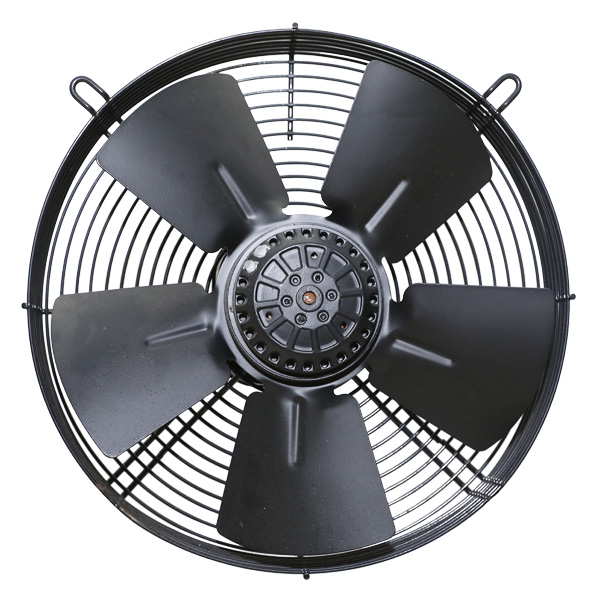

axial-fan-motor-300

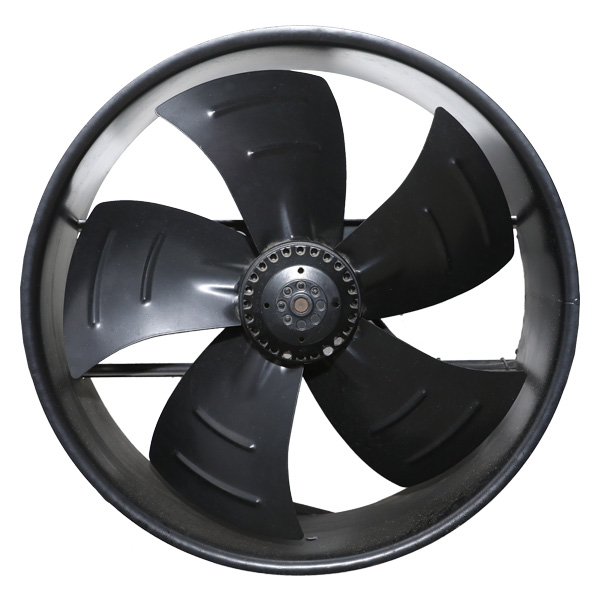

axial-fan-motor-300-frame
|
MODEL |
VOLITAGE |
FREQUENCY |
CURRENT |
INPUT |
SPEED |
AIR VOLUME |
NOISE |
CAPACITOR |
APPROX.WEIGHT |
SIZE(mm) |
||
|
V |
Hz |
A |
W |
r/min |
M3/h |
dBA |
μF |
Kg |
C |
H |
ΦL |
|
|
RQA4C-250 |
110 |
50 |
0.60 |
60 |
1350 |
1400 |
55 |
10 |
3.0 |
320 |
60 |
250 |
|
RQA4C-300 |
110 |
50 |
0.70 |
80 |
1350 |
1800 |
58 |
10 |
3.3 |
360 |
80 |
300 |
|
RQA4E-250 |
220 |
50 |
0.25 |
60 |
1350 |
1400 |
55 |
3 |
3.0 |
320 |
60 |
250 |
|
RQA4E-300 |
220 |
50 |
0.37 |
80 |
1350 |
1800 |
58 |
3 |
3.3 |
360 |
80 |
300 |
|
RQA4D-250 |
380 |
50 |
0.15 |
60 |
1350 |
1400 |
55 |
/ |
3.0 |
320 |
60 |
250 |
|
RQA4D-300 |
380 |
50 |
0.20 |
80 |
1350 |
1800 |
58 |
/ |
3.3 |
360 |
80 |
300 |
●The insulation class of the RQA series axial fan motor is F, and the protection class of that is IP54. All the motors have thermal protector in the winding.
●Voltage: The voltage of the single phase motor is 220V/50HZ, and the voltage of the three phases motor is 380V/50HZ, We can also supply other fan motors with different voltages and frequencies ac-cording to clients, requirement.
●The standard length of the electrical wire on the fan is 1.5m, and we also supply the fan mo-tors with connection box for clints, choises.
●The applicable ambient temperature of the fan motors used in condenser is from 0℃ to +60℃. The applicable ambient temperature of the fan motors used in evaporator is -30℃ to 0℃.
●The average service life of motors is over 30000 hours.
ILLustration Of Model
