• pic
    01

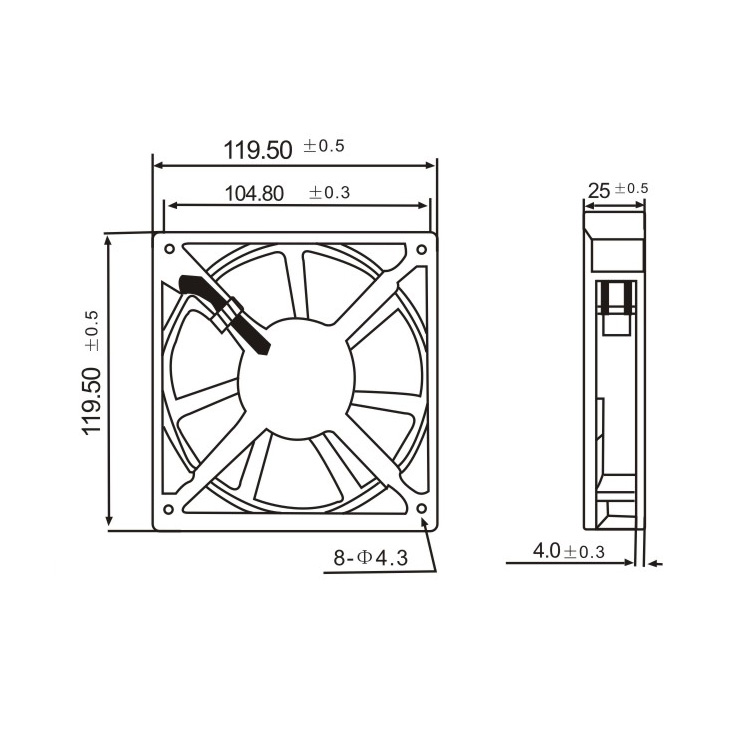

    RQA120×120×25mm

  • pic2
    02

    RQA120×120×25mm

  • pic3
    03

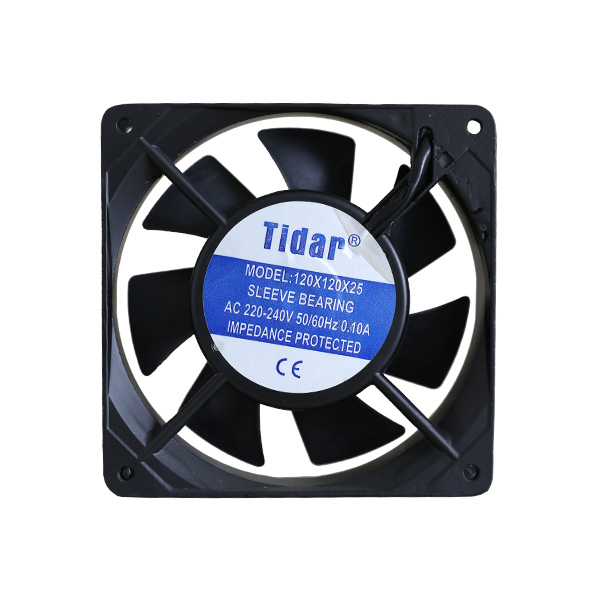

    AC12025

  • pic4
    04

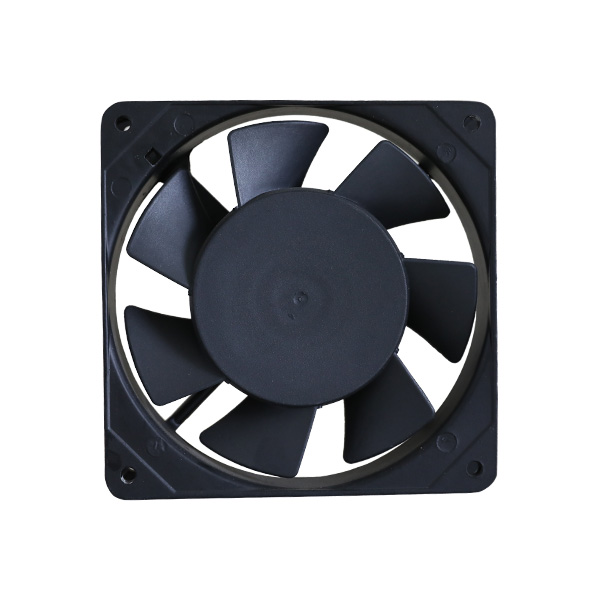

    AC12025

Product Details

Model

Voltage (V)

Current (A)

Power (W)

Air Volum (CFM)

Speed (Rpm)

Noise Level(db)

Frequency (HZ)

RQA12025HBL

110

0.20/0.19

16/15

38/42

2500/2700

37/37.5

50/60

RQA12025HBL

220

0.11/0.10

19/18

38/42

2500/2700

37/40

50/60

RQA12025HSL

110

0.20/0.19

16/15

38/42

2500/2700

37/37.5

50/60

RQA12025HSL

220

0.11/0.10

19/18

38/42

2500/2700

40/41

50/60



General description of the:

The jakets of this series of fans are of drum-shaped aluminum alloy. The fan blades of PBT plastics and the electric motor with flange protection form an integrity. It is characterized by small size, free maintenance, easy installation, low noise, less vibration, reliable operation and excellent functioning. These fans are chiefly used for ventilation and cooling applied the automatic controlling apparatus on ground, electronic devices, medical instruments, computers, power equipment, welding machines, packing and printing equipment, satellite communication, digital controlled machinery, office appliances and etc. machines, packing and printing equipment, satellite communication, digital controlled machinery, office appliances and etc.



APPLICATION CONDITIONS:

Temperature Range(℃):-20℃~+60℃Ball Bearing (B)   -10℃~40℃Sleeve Bearing(S);

Humidity permissible(%):90%—95%;

Atmospheric Pressure (milli hg ):55kpa(G)74.8KPA(H);

Vibration Permissible: vibration Frequency 10~50Hz,low and Double Amplitude 1.5mm;

Impact Permissible: (peak acceleration)150m/ S2



ILLustration of the code:





MEMORANDUM: If customers have special requests(such as changing voltage, improving insulation grade, etc. ),please contact to the technique department of our company!
