RQA4Q SERIES
RQA4Q SERIES
RQA4Q SERIES
MODEL |
POWER(W) |
CURRENT |
SPEED |
A |
B |
C |
D |
E |
K |
FAN SIZE |
|
OUTPUT |
INPUT |
(A) |
(r/min) |
|
|
|
|
|
|
|
|
RQA5-13/4Q |
5 |
30 |
0.20 |
1300 |
13 |
76 |
43.5 |
12 |
43 |
15 |
200 |
RQA10-20/4Q |
10 |
36 |
0.30 |
1300 |
20 |
82 |
43.5 |
10 |
49 |
15 |
230 |
RQA16-25/4Q |
16 |
60 |
0.45 |
1300 |
25 |
87 |
43.5 |
10 |
54 |
15 |
250 |
RQA18-30/4Q |
18 |
86 |
0.65 |
1300 |
30 |
93 |
43.5 |
10 |
59 |
15 |
300 |
RQA25-40/4Q |
25 |
25 |
0.70 |
1300 |
40 |
103 |
44 |
10 |
69 |
15.5 |
300 |
RQA34-45/4Q |
34 |
31 |
0.75 |
1300 |
45 |
125 |
61 |
10 |
91 |
33 |
300 |
● RQA series motors are shaded pole motors with single phase, 4shaded poles and running at rated voltage of 220~240V,50/60HZ or 110~120V,60HZ. They are widely used in the radiator, evaporator and other refrigeration equipment.
● The output pole is from 5W to 34W . which is relative to the stack length.
● The insulation class of motor is B, and the protection class of that is IP42.On request IP44 is available.
● The motors are protected by their impedance for output power below 10W and thermal protector with cut-off temperature of 135℃±5℃ for outpower above 10W.
● The applicable ambient temperature is from -30℃ to ±50℃.

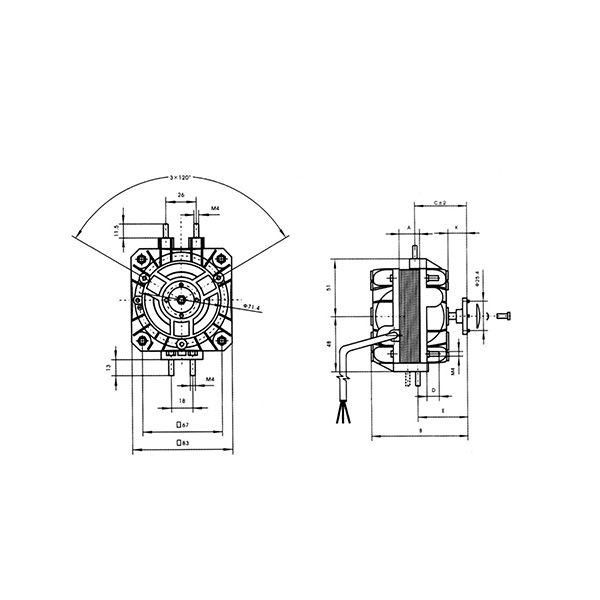

Illustration of Model
