Shaded pole motor
Shaded pole motor
Shaded pole motor
VOLTAGE: 220V-230V FREQUENCY: 50/60Hz
|
MODEL |
POWER(W) |
CURRENT |
SPEED |
A |
B |
C |
D |
E |
FAN SIZE |
|
|
OUTPUT |
INPUT |
(A) |
(r/min) |
|
|
|
|
|
|
|
|
RQA16-30 |
16 |
75 |
0.5 |
1300 |
30 |
20 |
45 |
103 |
49 |
250 |
|
RQA25-40 |
25 |
100 |
1.0 |
1300 |
40 |
15 |
42 |
106 |
46 |
300 |
|
RQA34-45 |
34 |
120 |
1.2 |
1300 |
45 |
28 |
51 |
119 |
55 |
300 |
VOLTAGE: 1100V-120V FREQUENCY: 60Hz
|
MODEL |
POWER(W) |
CURRENT |
SPEED |
A |
B |
C |
D |
E |
FAN SIZE |
|
|
OUTPUT |
INPUT |
(A) |
(r/min) |
|
|
|
|
|
|
|
|
RQA16-30 |
16 |
70 |
0.9 |
1450 |
30 |
20 |
45 |
103 |
49 |
250 |
|
RQA25-40 |
25 |
95 |
1.2 |
1450 |
40 |
15 |
42 |
106 |
46 |
300 |
|
RQA34-45 |
34 |
115 |
1.5 |
1450 |
45 |
28 |
51 |
119 |
55 |
300 |
● RQA series motors are shaded pole motors with single phase, 4shaded poles and running at rated voltage of 220~240V,50/60HZ or 110~120V,60HZ. They are widely used in the radiator, evaporator and other refrigeration equipment.
● The output pole is from 5W to 34W . which is relative to the stack length.
● The insulation class of motor is B, and the protection class of that is IP42.On request IP44 is available.
● The motors are protected by their impedance for output power below 10W and thermal protector with cut-off temperature of 135℃±5℃ for outpower above 10W.
● The applicable ambient temperature is from -30℃ to ±50℃.

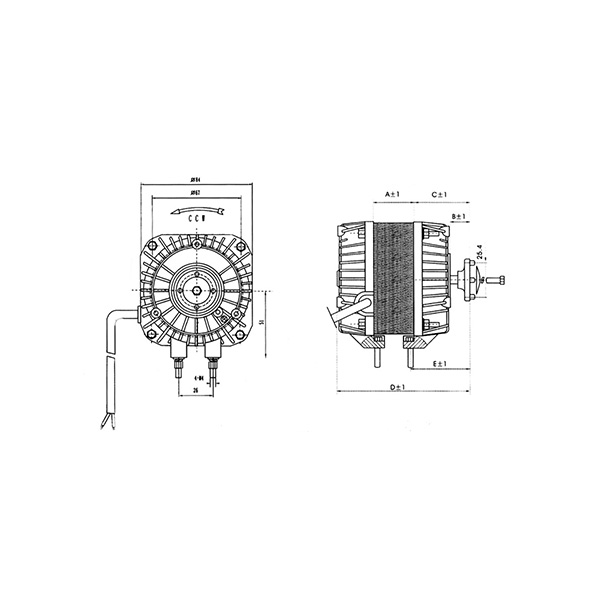

Illustration of Model
