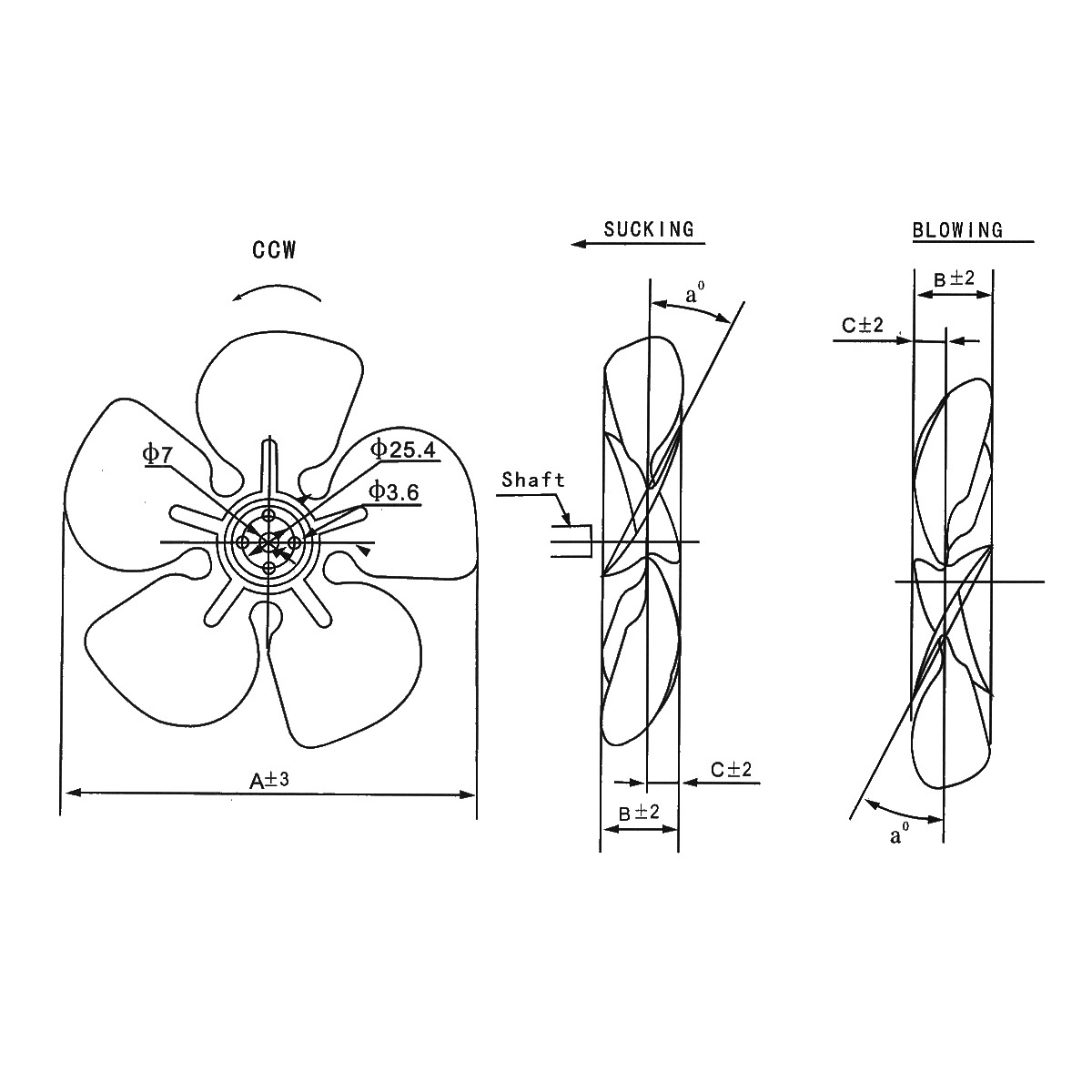

Fan Blade
Fan Blade
FAN TYPE |
α°/ B C/A |
19° |
22° |
25° |
28° |
31° |
|||||
B |
C |
B |
C |
B |
C |
B |
C |
B |
C |
||
Φ154 |
152 |
23 |
12 |
23 |
13 |
29 |
15 |
32 |
16 |
36 |
19 |
Φ172 |
170 |
25 |
13 |
28 |
14 |
31 |
16 |
34 |
17 |
38 |
19 |
Φ200 |
196 |
27 |
14 |
30 |
15 |
33 |
17 |
36 |
18 |
40 |
20 |
Φ230 |
228 |
30 |
16 |
33 |
17 |
36 |
18 |
39 |
20 |
42 |
21 |
Φ250 |
244 |
31 |
16 |
34 |
17 |
37 |
19 |
40 |
20 |
43 |
22 |
Φ254 |
252 |
32 |
18 |
35 |
21 |
38 |
23 |
41 |
24 |
44 |
29 |
Φ300 |
298 |
37 |
18 |
41 |
21 |
44 |
22 |
48 |
24 |
52 |
26 |
MODEL/α°/FAN |
RQS5-13 |
RQS7-20 |
RQS10-20 |
RQS16-25 |
RQS18-30 |
RQS25-40 |
RQS34-45 |
||||||
Φ154 |
28 |
31 |
|
|
|
|
|
|
|
|
|
|
|
Φ172 |
28 |
31 |
|
|
|
|
|
|
|
|
|
|
|
Φ200 |
28 |
31 |
28 |
31 |
28 |
31 |
|
|
|
|
|
|
|
Φ230 |
|
|
|
28 |
28 |
|
|
|
|
|
|
|
|
Φ250 |
|
|
|
|
|
22 |
28 |
|
28 |
31 |
|
|
|
Φ254 |
|
|
|
|
|
|
28 |
31 |
28 |
31 |
|
|
|
Φ300 |
|
|
|
|
|
|
|
|
22 |
22 |
25 |
25 |
28 |
● RQA series motors are shaded pole motors with single phase, 4shaded poles and running at rated voltage of 220~240V,50/60HZ or 110~120V,60HZ. They are widely used in the radiator, evaporator and other refrigeration equipment.
● The output pole is from 5W to 34W . which is relative to the stack length.
● The insulation class of motor is B, and the protection class of that is IP42.On request IP44 is available.
● The motors are protected by their impedance for output power below 10W and thermal protector with cut-off temperature of 135℃±5℃ for outpower above 10W.
● The applicable ambient temperature is from -30℃ to ±50℃.
