C FRAME SHADED POLE MOTOR
C FRAME SHADED POLE MOTOR
|

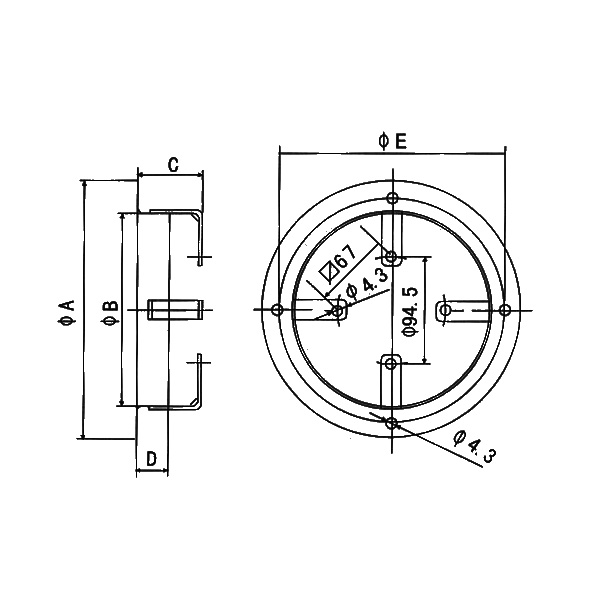

ΦFAN |
ΦA±2 |
ΦB±1 |
ΦC±2 |
ΦD±2 |
ΦE±1 |
|
172 |
223 |
180 |
49 |
25 |
208 |
|
200 |
246 |
208 |
49 |
25 |
236 |
|
230 |
276 |
238 |
49 |
25 |
266 |
|
254 |
300 |
262 |
49 |
25 |
290 |
|
300 |
378 |
308 |
49 |
30 |
365 |
● RQA series motors are shaded pole motors with single phase, 4shaded poles and running at rated voltage of 220~240V,50/60HZ or 110~120V,60HZ. They are widely used in the radiator, evaporator and other refrigeration equipment.
● The output pole is from 5W to 34W . which is relative to the stack length.
● The insulation class of motor is B, and the protection class of that is IP42.On request IP44 is available.
● The motors are protected by their impedance for output power below 10W and thermal protector with cut-off temperature of 135℃±5℃ for outpower above 10W.
● The applicable ambient temperature is from -30℃ to ±50℃.
Illustration of Model
