C FRAME SHADED POLE MOTOR
C FRAME SHADED POLE MOTOR
|

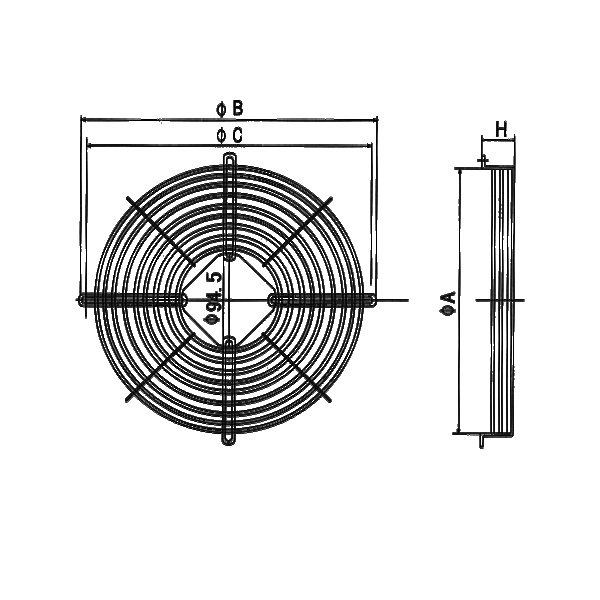

ΦFAN |
Φ172 |
Φ200 |
Φ230 |
Φ254 |
Φ300 |
|
A |
188 |
214 |
246 |
270 |
324 |
|
B |
220 |
248 |
278 |
300 |
354 |
|
C |
210 |
236 |
266 |
290 |
344 |
|
H |
11 |
25 |
27 |
1 7 |
17 |
● RQA series motors are shaded pole motors with single phase, 4shaded poles and running at rated voltage of 220~240V,50/60HZ or 110~120V,60HZ. They are widely used in the radiator, evaporator and other refrigeration equipment.
● The output pole is from 5W to 34W . which is relative to the stack length.
● The insulation class of motor is B, and the protection class of that is IP42.On request IP44 is available.
● The motors are protected by their impedance for output power below 10W and thermal protector with cut-off temperature of 135℃±5℃ for outpower above 10W.
● The applicable ambient temperature is from -30℃ to ±50℃.
Illustration of Model
