185FZL(W) 200FZL(W)
185FZL(W) 200FZL(W)
|
Model |
Voltage (V) |
Frequency (HZ) |
Phase |
Inputpower (W) |
Current AMP |
Speed R/min |
Airflow M³/min |
Noise dB(A) |
Weight (kg) |
Capacitance (µF/V) |
|
RQA185FAZL-2C |
110 |
50 |
1 |
75 |
0.70 |
2600 |
16 |
60 |
2.2 |
5.0/250 |
|
RQA185FZL-2E |
220 |
50 |
1 |
75 |
0.35 |
2600 |
16 |
60 |
2.2 |
2.0/500 |
|
RQA185FZL-2D1 |
380 |
50 |
1 |
75 |
0.25 |
2600 |
16 |
60 |
2.2 |
1.5/500 |
|
RQA185FZL-2D |
380 |
50 |
3 |
75 |
0.20 |
2600 |
16 |
60 |
2.2 |
/ |
|
RQA185FZL-2C |
110 |
50 |
1 |
75 |
0.70 |
2600 |
17 |
60 |
2.4 |
5.0/250 |
|
RQA185FZL-2E |
220 |
50 |
1 |
75 |
0.35 |
2600 |
17 |
60 |
2.4 |
2.0/500 |
|
RQA185FZL-2D1 |
380 |
50 |
1 |
75 |
0.25 |
2600 |
17 |
60 |
2.4 |
1.5/500 |
|
RQA185FZL-2D |
380 |
50 |
3 |
75 |
0.20 |
2600 |
17 |
60 |
2.4 |
/ |
|
Model |
Voltage (V) |
Frequency (HZ) |
Phase |
Inputpower (W) |
Current AMP |
Speed R/min |
Airflow M³/min |
Noise dB(A) |
Weight (kg) |
Pressure (pa) |
Capacitance (µF/V) |
Drawing |
|
RQA200WZL-2C |
110 |
50 |
1 |
75 |
0.70 |
2600 |
17 |
160 |
2.5 |
60 |
5.0/250 |
A |
|
RQA200WZL-2E |
220 |
50 |
1 |
75 |
0.35 |
2600 |
17 |
160 |
2.5 |
60 |
2.0/500 |
A |
|
RQA200WZL-2D1 |
380 |
50 |
1 |
75 |
0.25 |
2600 |
17 |
160 |
2.5 |
60 |
1.5/500 |
A |
|
RQA200WZL-2D |
380 |
50 |
3 |
75 |
0.20 |
2600 |
17 |
160 |
2.5 |
60 |
/ |
C |
Use environment:
1.Temperature：-40℃~+85℃
2.Net：≤90%
3.Air presure：55kpa（Quite elevation 4000m）
4.Vibration：10~55Hz，Double amplitude1.5mm
5.Shock：150m/S2（Peak acceleration）
Outer rotor, iron impeller
Large air volume and low noise
Low power consumption and high reliability
Long life and easy installation
Class F insulation（155℃）
|

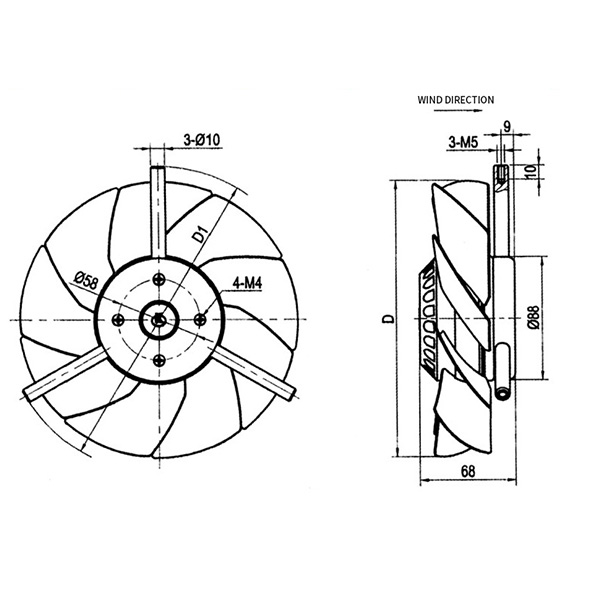

Model |
D |
D1 |
|
185FZL |
φ185 |
φ194 |
|
200FZL |
φ200 |
φ218 |
●The insulation class of the RQA series axial fan motor is F, and the protection class of that is IP54. All the motors have thermal protector in the winding.
●Voltage: The voltage of the single phase motor is 220V/50HZ, and the voltage of the three phases motor is 380V/50HZ, We can also supply other fan motors with different voltages and frequencies ac-cording to clients, requirement.
●The standard length of the electrical wire on the fan is 1.5m, and we also supply the fan mo-tors with connection box for clints, choises.
●The applicable ambient temperature of the fan motors used in condenser is from 0℃ to +60℃. The applicable ambient temperature of the fan motors used in evaporator is -30℃ to 0℃.
●The average service life of motors is over 30000 hours.
ILLustration Of Model
|
Model |
Voltage (V) |
Frequency (HZ) |
Phase |
Inputpower (W) |
Current AMP |
Speed R/min |
Airflow M³/min |
Noise dB(A) |
Weight (kg) |
Pressure (pa) |
Capacitance (µF/V) |
Drawing |
|
RQA200WZL-2C |
110 |
50 |
1 |
75 |
0.70 |
2600 |
17 |
160 |
2.5 |
60 |
5.0/250 |
A |
|
RQA200WZL-2E |
220 |
50 |
1 |
75 |
0.35 |
2600 |
17 |
160 |
2.5 |
60 |
2.0/500 |
A |
|
RQA200WZL-2D1 |
380 |
50 |
1 |
75 |
0.25 |
2600 |
17 |
160 |
2.5 |
60 |
1.5/500 |
A |
|
RQA200WZL-2D |
380 |
50 |
3 |
75 |
0.20 |
2600 |
17 |
160 |
2.5 |
60 |
/ |
C |
